Trailer Accessaries

Trailer Accesaries Four Functions Trailer Tail Lamp Kit LED Lights

Certification
CE and ROHS
Model Number
ZC4013
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Type
European Trailer Lamp Kit

Contact Now



European Trailer connector 7P 12V

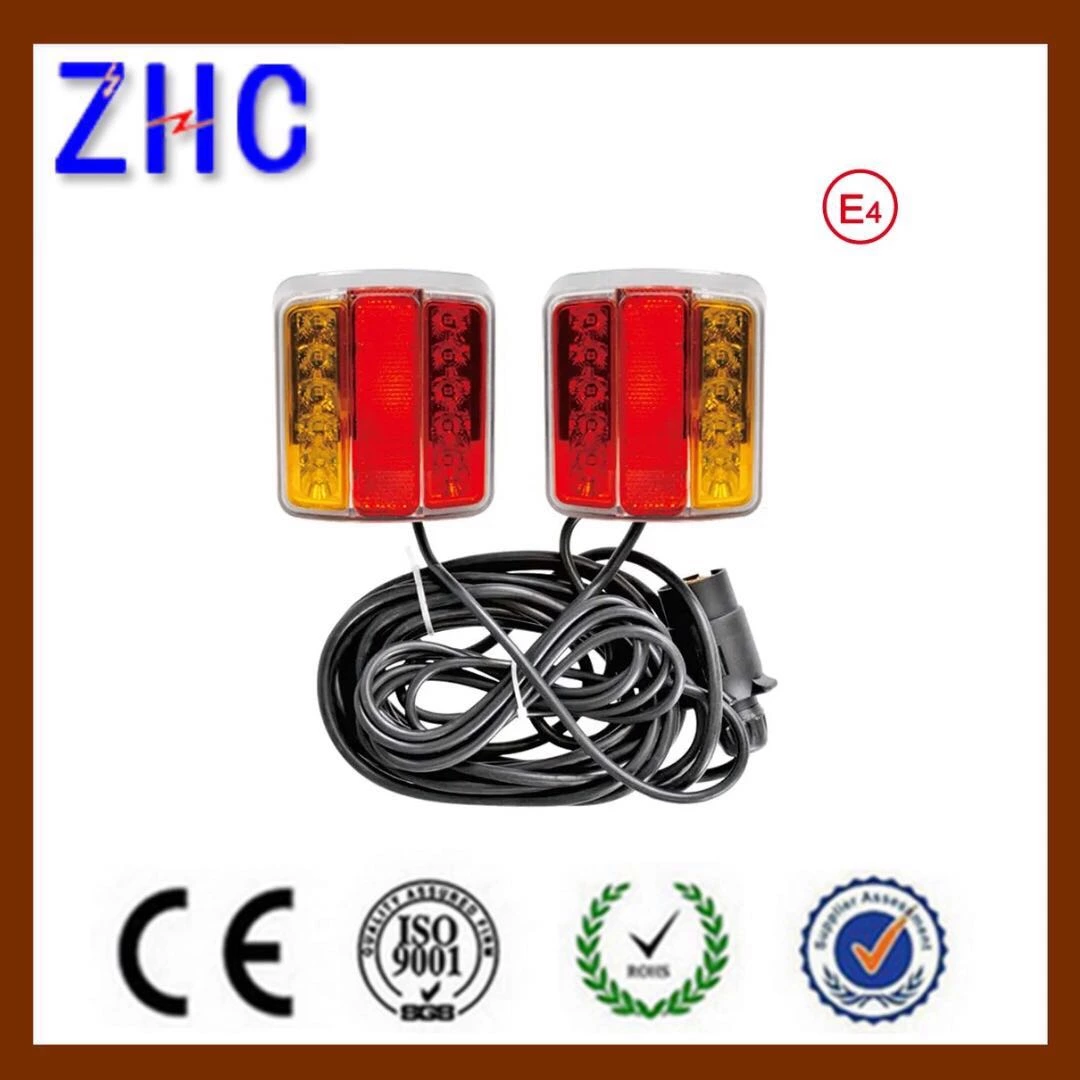

Trailer Accesaries Four Functions Trailer Tail Lamp Kit  LED Lights

Type  Trailer Lamp Kits
Model NO.  ZC4013
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





Plastic Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



7P Trailer Connector
