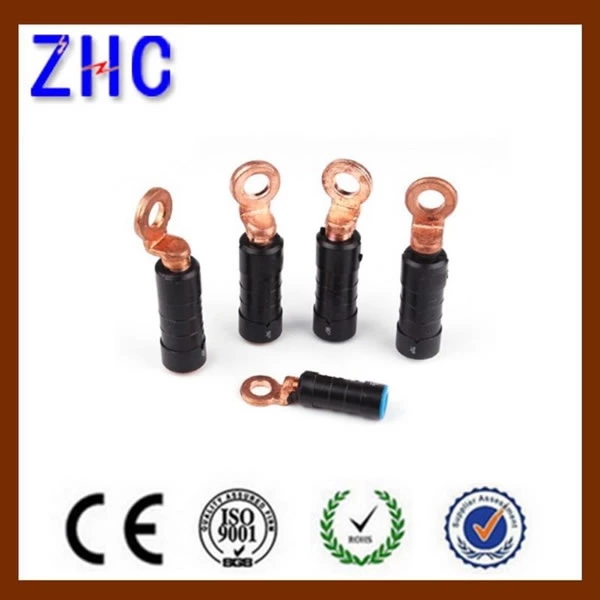

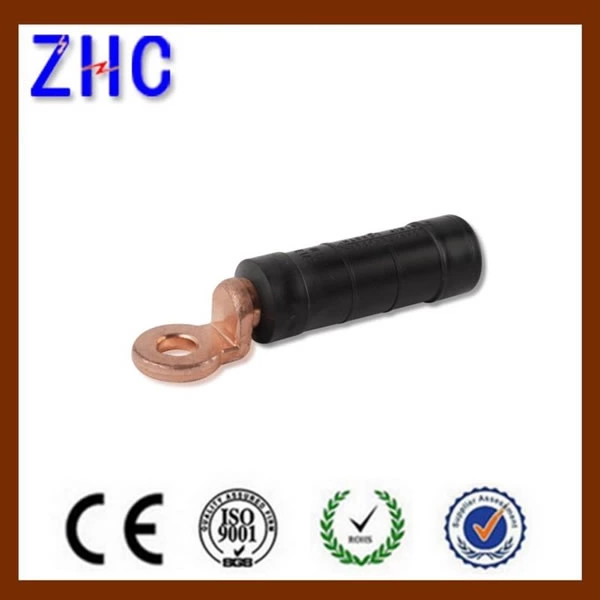

Crimping Pre Insulated Bimetal Cable Lug With Waterproof UV resistant Thermoplastic Coating
- Certification
- CE
- Model Number
- CPTAU
- Packaging Details
- 200pcs/ctn , 50x21x21cm , 15kgs
- Supply Ability
- 100000PCS/Month
- Material
- Plastic Brass Lug
Crimping Pre Insulated Bimetal Cable Lug With Waterproof UV resistant Thermoplastic Coating Application: The CPTAU Pre-insulated bimetal lug is used to establish connection between LV-ABC cable and
Crimping Pre Insulated Bimetal Cable Lug With Waterproof UV resistant Thermoplastic Coating
Application:
The CPTAU Pre-insulated bimetal lug is used to establish connection between LV-ABC cable and electrical equipments.
Features:
- Palm is made of 99.9% pure copper and sleeve is made of 99.6% pure aluminium.
- Cross-section of conductor can be easily identified by the color code of elastomeric rings.
- Elastomeric ring and pre-filled grease enable super waterproof performance.
- Watertightness test carried out at 6kV for 1 minute under water.
- Insulation tube is made of weather and UV resistant polymer.
- Standard: EN 50483-4 ,NFC 33-021
| Item No. | φ | C | B | L | Color code |
| CPTAU 16-10 | 10.5 | 16 | 20 | 75 | Blue |
| CPTAU 25-12 | 13 | 16 | 24 | 100 | Orange |
| CPTAU 35-12 | 13 | 20 | 24 | 100 | Red |
| CPTAU 50-12 | 13 | 20 | 24 | 100 | Yellow |
| CPTAU 70-12 | 13 | 20 | 24 | 100 | White |
| CPTAU 95-12 | 13 | 20 | 24 | 100 | Grey |
| CPTAU 120-12 | 13 | 28 | 30 | 118 | Pink |
| CPTAU 150-12 | 13 | 28 | 30 | 118 | Violet |
