16mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase
- Certification
- CE
- Model Number
- MJPT16
- Packaging Details
- 200pcs/ctn , 50x21x21cm , 15kgs
- Supply Ability
- 100000PCS/Month
- Material
- Aluminum Alloy

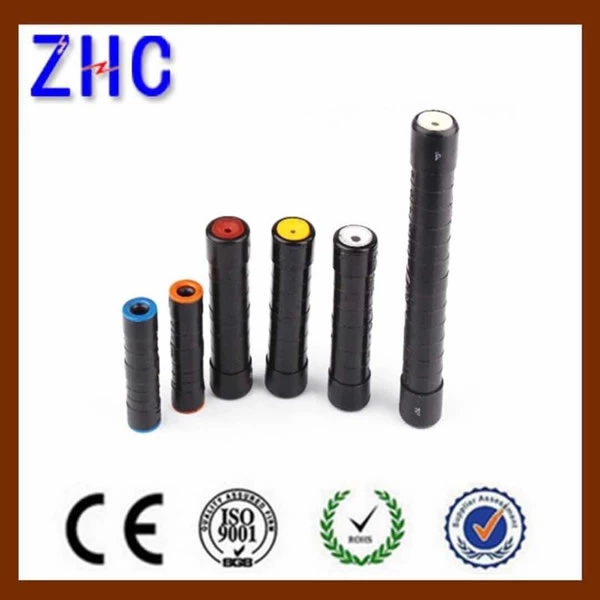

16mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase
16mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase
Application:
These Pre-Insulated Sleeves are used to link together LV insulated overhead lines.
Descriptions:
The sleeve is composed of:
- An aluminium (phase) or aluminium alloy (neutral) sleeve with a stop in the middle.
- A black thermoplastic sealed with a flexible elastomer ring.
- A neutral contact grease in the tube which improve the contact area and protect
- The aluminium against oxydation.
- The crimping is realized on the plastic part
- According to the marks on the body of the sleeves.
Features
They are water resistant and pass the dieletric test of 6 kV in water.
They withstand:
- 50% of the mechanical phase breaking load.
- 100 % of the mechanical neutral messenger breaking load.
- 80% of the conductor load in the self
- Supporting version (M type Alus)
- A color code permits to check easily
- Test voltage 6 kV / 50 Hz / 1 min in water.
| Type | Cable Size(mm²) | Plastic Sleeve Diameter(mm) | Length | |
| A | B | C | L | |
| MJPT 16/16 | 16 | 16 | 16 | 70.5 |
| MJPT 25/25 | 25 | 25 | 16 | 70.5 |
| MJPT 35/35 | 35 | 35 | 20 | 98.5 |
| MJPT 50/50 | 50 | 50 | 20 | 98.5 |
| MJPT 70/70 | 70 | 70 | 20 | 98.5 |
| MJPT 95/95 | 95 | 95 | 20 | 98.5 |
