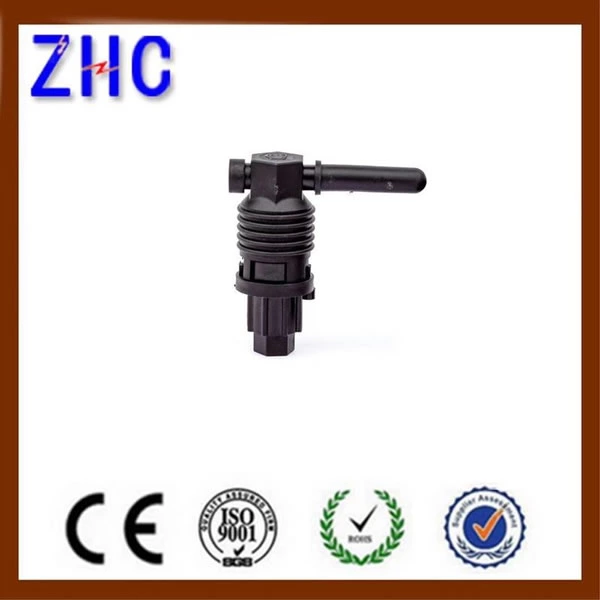

63A 500V Neozed Fuse D02 Disconnector Holder For overhead ABC line System
- Certification
- CE
- Model Number
- DPA63-2
- Packaging Details
- 200pcs/Ctn, 52X36X35cm, 22KGS
- Supply Ability
- 20000/Month
63A 500V Neozed Fuse D02 Disconnector Holder For overhead ABC line System
Applications:
- The DPA fuse connector is used in the ABC cable systems , it goes with 63A D02 neozed fuse.
- DPA can be branch line for IPC piercing connector combo set.
Feature:
| Standard | NFC33020 |
| Body Material | UV Black Thermoplastic |
| Color | Black |
| Tightening Torque | >= 15NM |
| Fuse Type Hexagonal nut for Mounting Locked | 13mm |
| Tueca hexagonal tipo fusible para el desmontaje con llave | 17mm |
| Voltage | 120V |
| Rated Current | 100A |
| Max Current | 125A |
| Block Insuation | 0.6KV |
| Fuse Rating | 63A |
| Nominal Voltage Fuse | 380V |
| Type Fuse (D02) | neozed |
| Certificate | ISO9001 |
| Conducor Rang Size For the Main Tap | #8-#4/0 |
| Conductor Rang Size for the Secondary Branch | #10-#6 |
| Toothed plates | Tinned Copper |
