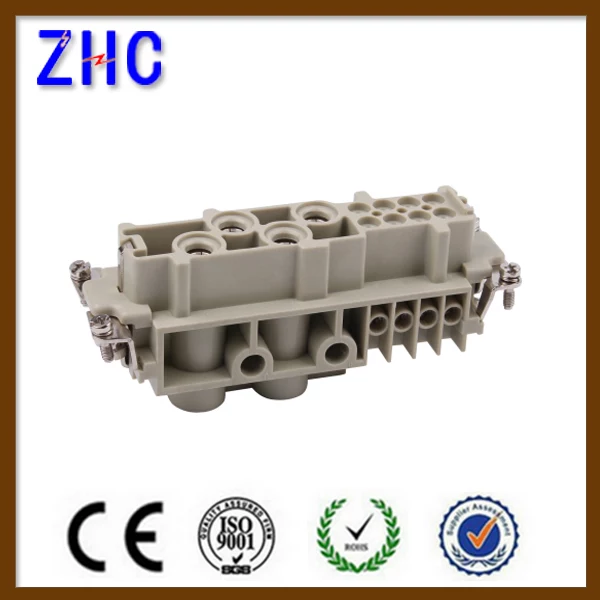

HK4/8F Heavy Duty Connector 830V 4P with 8P earth pin 80A Female Insert With Wire gauge 1.5-16mm2 AWG16-6
- Certification
- CE ROHS
- Model Number
- HK4/8F
- MOQ
- 50
- Packaging Details
- 100PCS/CTN
- Supply Ability
- 300000PCS
- Material
- Polycarbonate, copper alloy , surface hard-silver plated
- Tightening Torque
- 0.5Nm
- Operating Temperature
- -40℃...+125℃
- Voltage
- 830V
- Type
- Insert
- Gender
- Female
- Wire
- 1.5-16mm2 AWG16-6
- Number of Contact
- 4P + 8E
- Flame Resistant Degree
- V0
- Pollution degree
- 3
- IP degree
- IP67
- Rated Impulse voltage
- 8KV
HK4/8F Heavy Duty Connector 830V 4P with 8P earth pin 80A Female Insert With Wire gauge 1.5-16mm2 AWG16-6
Usage
1.Heavy duty connectors are specifically designed for applications in extremely rough environments.Their modular design makes the distribution of power and signals simple.
2.They are used wherever there is a need foe a secure, simple and timesaving assembly of machinery and facilities. The connector housings are made of diecast aluminum and offer excellent protection against dirt, moisture and mechanical stress.Special modular connectors make it posslble to integrate signals, power supply,pneumatics, and data connections into a single connector.
3.The connector's housing, sealing and locking mechanism pcotect the connection from external influence such as mechanical shocks, foreign bodies, humidity, dust, water, or other fluides such as cleaning and cooling agents, oils, ect.
Products Details
