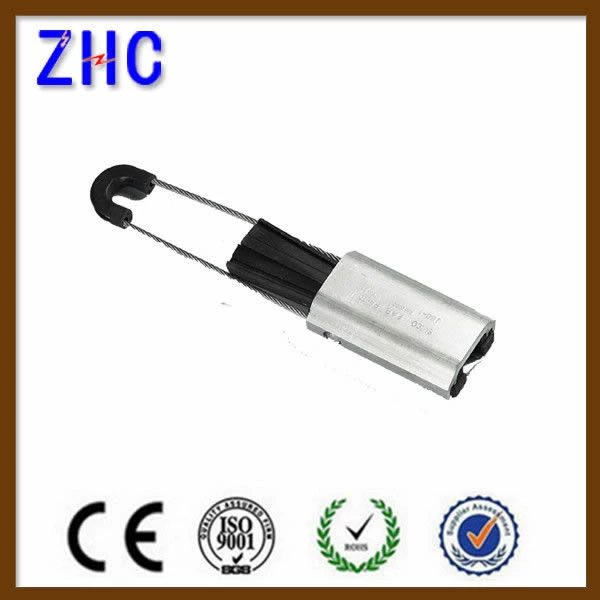

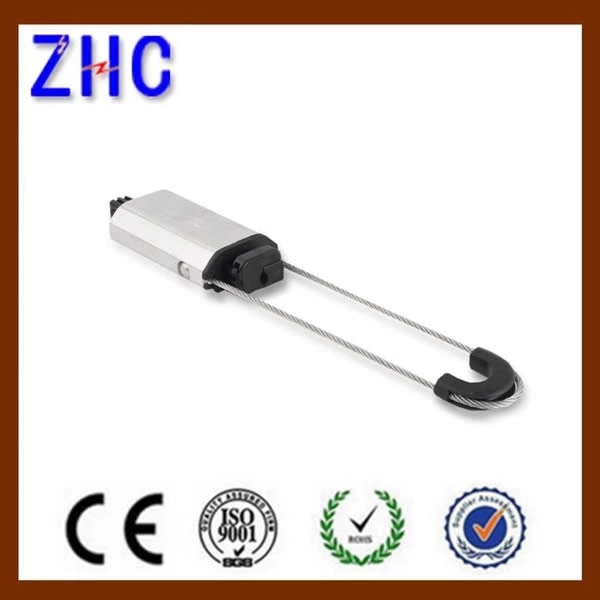

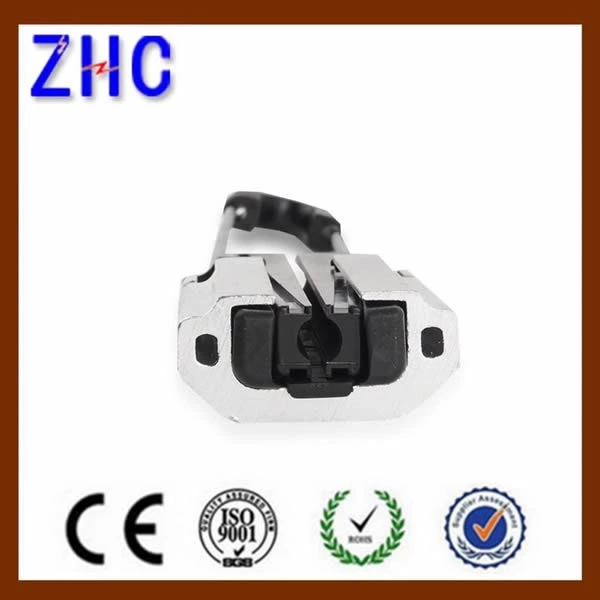

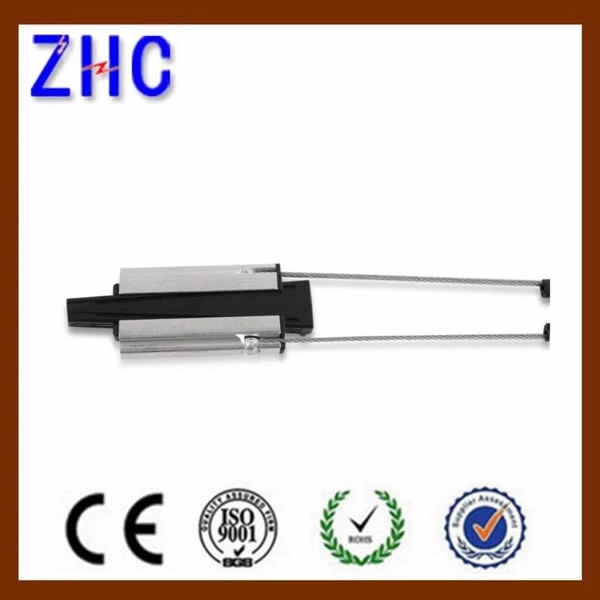

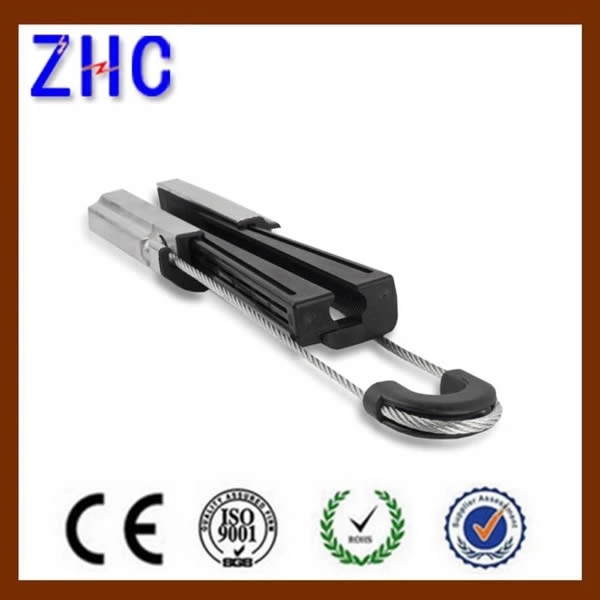

Overhead Line Cable Self Supporting Assembly Hardware fittings Aluminum Alloy Dead End Tension Clamp
- Certification
- CE
- Model Number
- JBG
- Packaging Details
- 50PCS/CTN, 41x28x32CM , 18KGS
- Supply Ability
- 500000PCS one month
- Material
- Anti UV Thermoplastic +Aluminum Alloy Body
- Suitable Cable Use
- Aerial Bundle Cable
Overhead Line Cable Self Supporting Assembly Hardware fittings Aluminum Alloy Dead End Tension Clamp Product property: The aluminum alloy body anchor clamp is suitable for low-voltage ABC cable.Wed
Overhead Line Cable Self Supporting Assembly Hardware fittings Aluminum Alloy Dead End Tension Clamp
Product property:
The aluminum alloy body anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps are intended for fastening of aerial bundle cables on trunk lines or their branches. The clamps provide the required tension of the cable over the span length. The clamp made of high strength aluminum alloy which clamp the neutral messenger without damaging the insulation.
Features:
- According to NF C 33 042
- Easy to open bail permits fixing to brackets and pigtails
- Tool free installation with wedges sliding inside the body
| Item No. | Conductor(mm) | Breaking load |
| JBG-1000 | 8-11 | 10KN |
| JBG-1500 | 11-14 | 15KN |
| JBG-2000 | 14-18 | 22KN |
