Winter Sweet Type WCJC Brass Joint Clamp
- Certification
- CE
- Model Number
- WCJC
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Brass
Winter Sweet Type WCJC Brass Joint Clamp
Application:
WCJC Brass Jointing Clamp is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment.
Features：
1) The surface is nickel plated.
2) WCJC Brass Jointing Clamp range is from 16 sqmm to 500 sqmm.
Advantages：
1) They can be reused many times.
2) Various kinds of size, meet with the customers’ requirements.

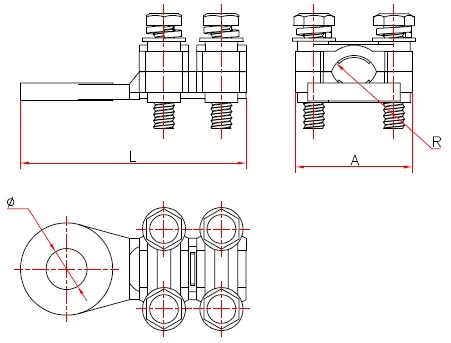

| Item No. | Conductor(mm²） | φ | A | L | R |
| WCJC-1 | 16 | 7.5 | 21 | 37 | 3 |
| WCJC-2 | 25-35 | 11 | 22 | 48 | 4 |
| WCJC-3 | 50-70 | 11 | 31 | 60 | 5.5 |
| WCJC-4 | 120-150 | 15 | 35 | 70 | 8.5 |
| WCJC-5 | 210-250 | 17 | 46 | 90 | 10.5 |
| WCJC-6 | 300 | 21 | 56 | 115 | 12 |
| WCJC-7 | 400-500 | 23 | 62 | 125 | 15 |
