TM Copper Cable Lug
- Certification
- CE
- Model Number
- TM
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Copper
TM Copper Cable Lug
Application:
TM Copper Compression Lugs are suitable for stranded round shaped conductors and pre-rounded sector shaped conductors.
Features:
1) Have a viewing window to check the location of the conductor.
2) Material: CU≥99.9%
3)Surface: electro tin plated.
|

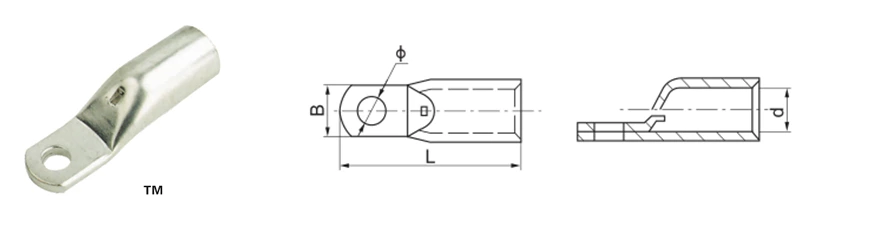

Type |
Dimensions(mm) |
|||
|
L |
d |
B |
Φ |
|
|
TM 10-5 |
27 |
4.3 |
9 |
5.3 |
|
TM 16-5 |
31 |
5.6 |
9 |
5.3 |
|
TM 25-5 |
35 |
7 |
9 |
5.3 |
|
TM 35-6 |
40.5 |
8.4 |
11.5 |
6.4 |
|
TM 50-8 |
45.5 |
9.5 |
12.8 |
8.4 |
|
TM 70-8 |
49 |
11.2 |
12.8 |
8.4 |
|
TM 95-8 |
54 |
13.5 |
15.5 |
8.4 |
|
TM 120-8 |
68 |
15.6 |
19 |
8.4 |
|
TM 120-10 |
68 |
15.6 |
19 |
10.5 |
|
TM 150-8 |
75 |
16.7 |
19 |
8.4 |
|
TM 150-10 |
75 |
16.7 |
19 |
10.5 |
|
TM 185-10 |
79 |
19 |
24.5 |
10.5 |
|
TM 240-10 |
86 |
21.1 |
29.8 |
10.5 |
|
TM 240-12 |
92 |
21.1 |
29.8 |
13.2 |
|
TM 240-16 |
100 |
21.1 |
29.8 |
17 |
|
TM 300-12 |
97 |
23.7 |
31 |
13.2 |
