SC(JGY) Copper Cable Terminal
- Certification
- CE
- Model Number
- SC(JGY)
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Copper

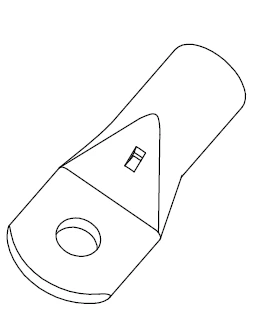

SC(JGY) Copper Cable Terminal
Application:
SC(JGY) Copper Compression Lugs are suitable for stranded round shaped conductors and pre-rounded sector shaped conductors.
Features:
1) Have a viewing window to check the location of the conductor.
2) Material: CU≥99.9%
3)Surface: electro tin plated.
|
Item No. |
Φ±0.5 |
D±0.5 |
d±0.5 |
L±2 |
Weight(g) |
|
SC( JGY )- 6 |
Φ5.2 , Φ6.2 , Φ8.2 |
5.5 |
4.1 |
24 |
2.3 |
|
SC ( JGY ) - 10 |
Φ6.2 , Φ8.2 |
6.5 |
5.1 |
28 |
3.0 |
|
SC (JGY ) - 16 |
Φ6.2 , Φ8.2 , Φ10.5 |
8.0 |
6.4 |
33 |
5.5 |
|
SC ( JGY) - 25 |
Φ6.2 , Φ8.2 , Φ10.5 |
9.0 |
7.0 |
36 |
7.1 |
|
SC ( JGY ) - 35 |
Φ6.2 , Φ8.2 , Φ10.5 , Φ12.5 |
10.5 |
8.5 |
42 |
11.0 |
|
SC ( JGY ) - 50 |
Φ8.2 , Φ10.5 , Φ12.5 |
12.0 |
9.8 |
49 |
14.0 |
|
SC ( JGY ) - 70 |
Φ8.2 , Φ10.5 , Φ12.5 |
14.5 |
11.9 |
55 |
25.0 |
|
SC ( JGY ) - 95 |
Φ10.5 , Φ12.5 |
16.0 |
13.0 |
60 |
35.0 |
|
SC ( JGY ) - 120 |
Φ12.5 , Φ16.5 |
19.0 |
15.4 |
67 |
55.0 |
|
SC ( JGY ) - 150 |
Φ12.5 , Φ16.5 |
20.5 |
16.7 |
73 |
66.0 |
|
SC ( JGY ) - 185 |
Φ16.5 |
23.5 |
19.3 |
78 |
90.0 |
|
SC(JGY ) - 240 |
Φ16.5 |
26.0 |
21.1 |
92 |
133.0 |
|
SC(JGY ) - 300 |
Φ16.5 , Φ20.5 |
30.0 |
24.0 |
102 |
210.0 |
|
SC ( JGY ) - 400 |
Φ16. 5 , Φ20. 5 |
34.0 |
27.6 |
113 |
290.0 |
|
SC ( JGY ) - 500 |
Φ16. 5 , Φ20.5 |
38.0 |
31.6 |
123 |
371.0 |
|
SC ( JGY ) - 630 |
Φ20. 5 |
45.0 |
37.6 |
145 |
575.0 |
