SC (JGK) Copper Cable Lug
- Certification
- CE
- Model Number
- SC(JGK)
- MOQ
- 1000
- Supply Ability
- 2000000PCS/month
- Material
- Copper

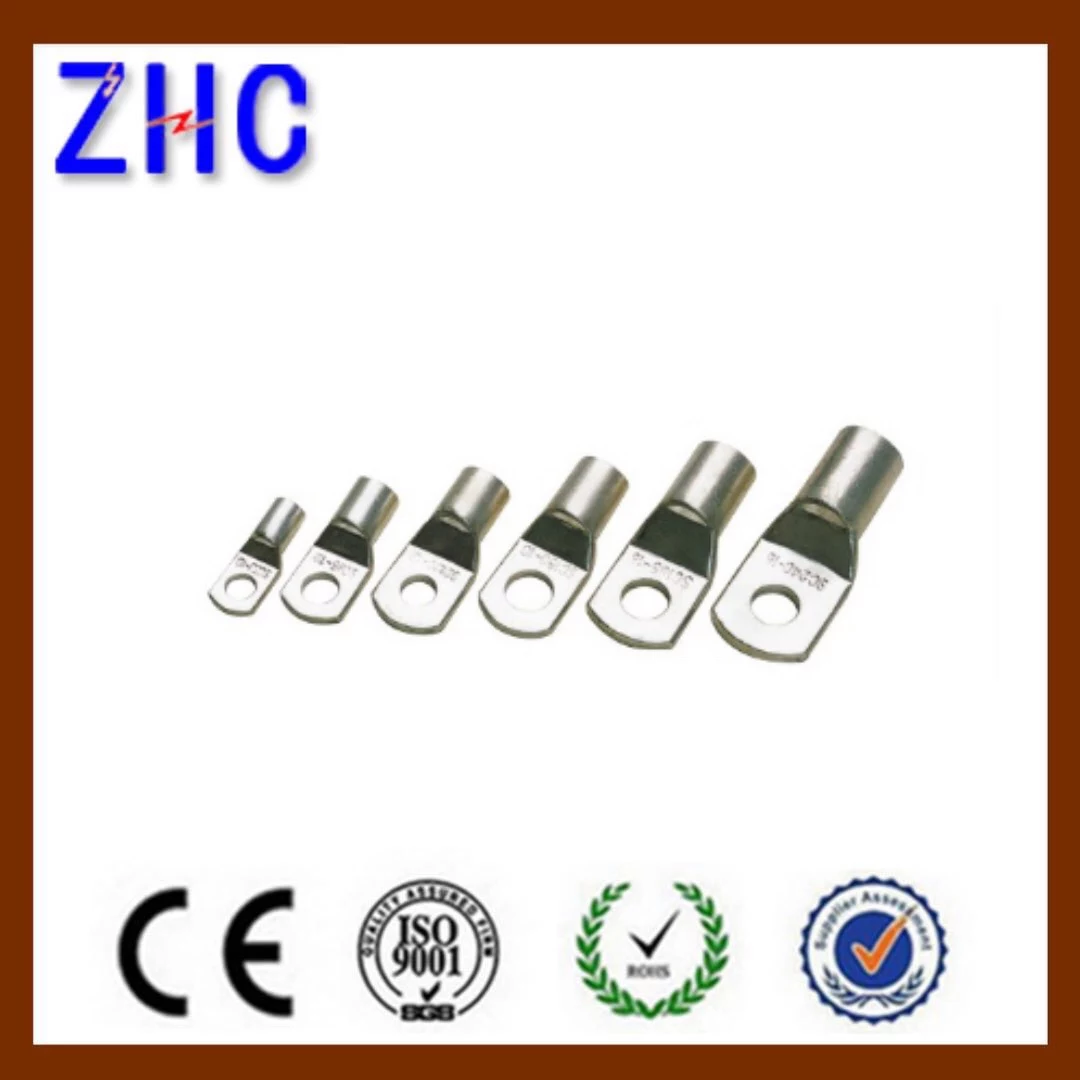

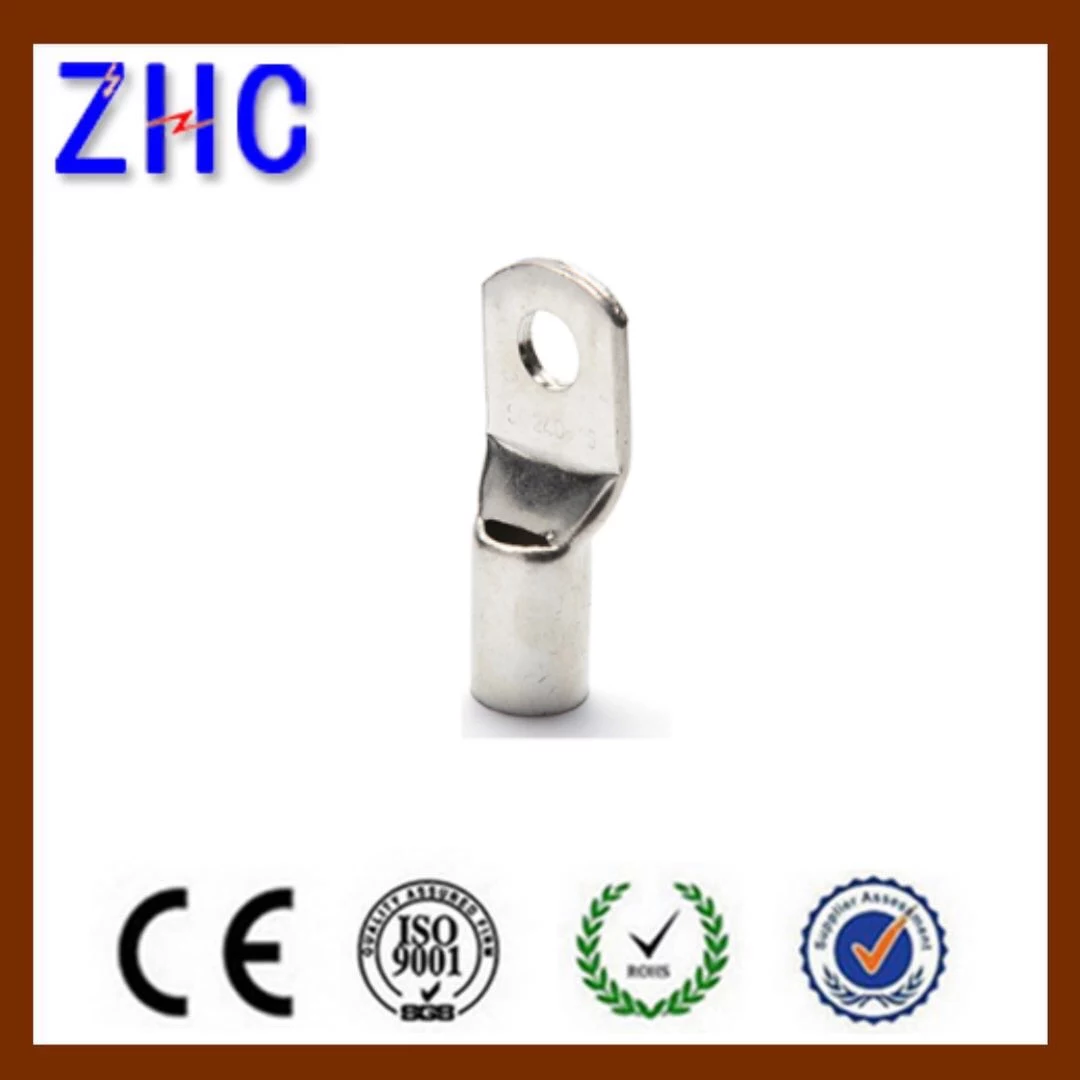

SC (JGK) Copper Cable Lug
Application:
SC (JGK) Copper Compression Lugs are suitable for stranded round shaped conductors and pre-rounded sector shaped conductors.
Features:

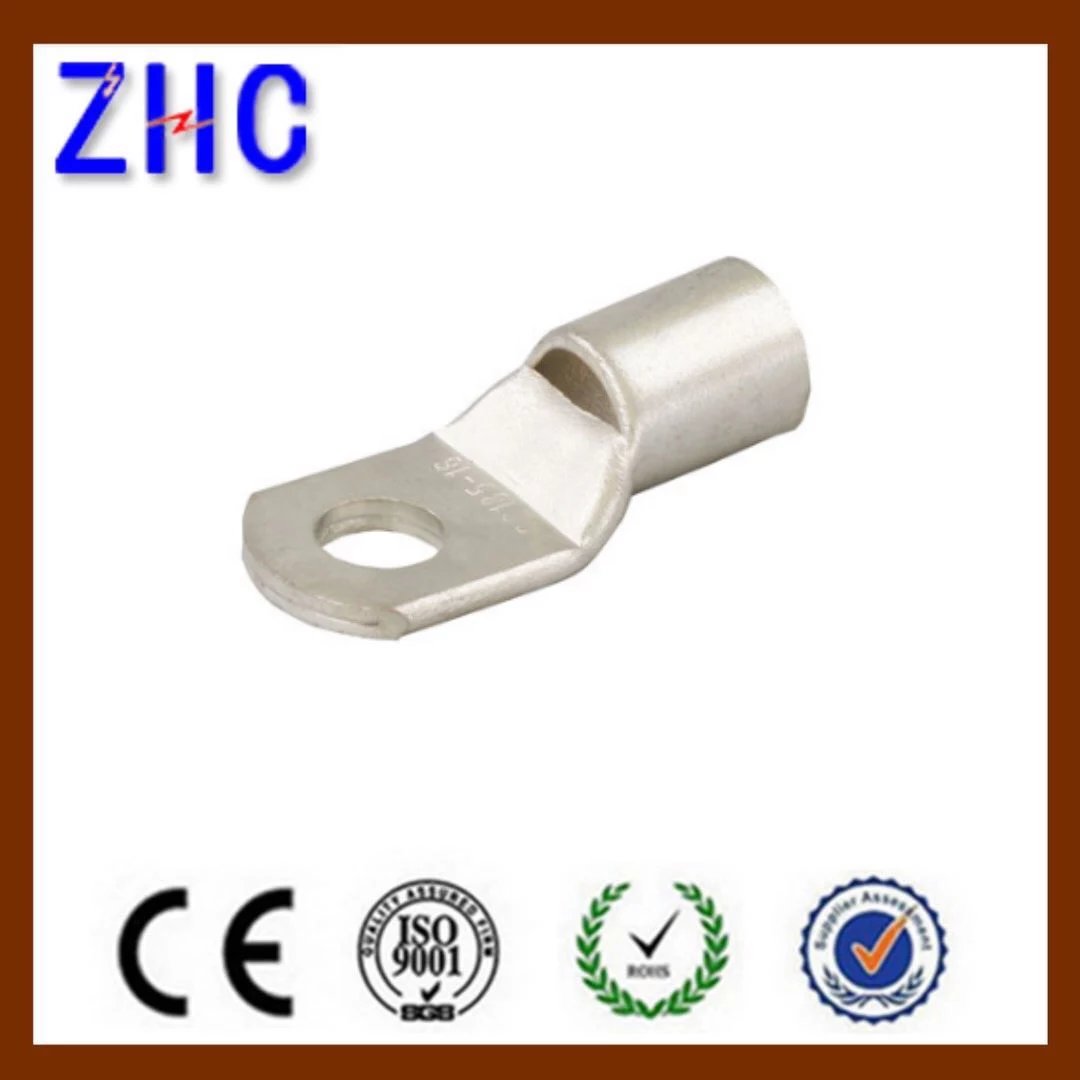

1) Have a viewing window to check the location of the conductor.
2) Material: CU≥99.9%
3)Surface: electro tin plated.
| Item No. | Φ±0.5 | D±0.5 | d±0.5 | L±2 | L1±2 | S±0.2 | W±1.5 | Weight(g) |
| SC(JGK)-1.5 | Φ4.2, Φ5.2,Φ6.2 | 3.5 | 2.5 | 18.0 | / | / | / | 0.7 |
| SC(JGK)-2.5 | Φ4.2, Φ5.2,Φ6.2 | 4.0 | 3.0 | 19.0 | / | / | / | 0.8 |
| SC(JGK)-4 | Φ4.2, Φ5.2,Φ6.2 | 5.0 | 4.0 | 20.0 | / | / | / | 1.0 |
| SC(JGK)-6 | Φ6.5 | 6.0 | 4.8 | 24.5 | 8.5 | 1.2 | 9.0 | 1.9 |
| SC(JGK)-6 | Φ8.5 | 6.0 | 4.8 | 24.5 | 8.5 | 0.8 | 11.8 | 1.9 |
| SC(JGK)-10 | Φ6.5 | 6.6 | 5.2 | 27.0 | 9.0 | 1.2 | 9.7 | 2.2 |
| SC(JGK)-10 | Φ8.5 | 6.6 | 5.2 | 27.0 | 9.0 | 0.9 | 11.6 | 2.2 |
| SC(JGK)-16 | Φ6.5, Φ8.5 | 8.0 | 6.1 | 31.0 | 11.0 | 1.9 | 11.6 | 4.5 |
| SC(JGK)-16 | Φ10.5 | 8.0 | 6.1 | 31.0 | 11.0 | 1.5 | 14.0 | 4.5 |
| SC(JGK)-25 | Φ6.5, Φ8.5,Φ10.5 | 9.0 | 6.8 | 33.0 | 13.0 | 2.0 | 13.0 | 6.2 |
| SC(JGK)-35 | Φ6.5, Φ8.5,Φ10.5 | 10.5 | 8.5 | 38.0 | 14.0 | 2.0 | 15.5 | 9.0 |
| SC(JGK)-35 | Φ12.5 | 11.0 | 8.8 | 38.0 | 14.0 | 2.0 | 16.5 | 9.0 |
| SC(JGK)-50 | Φ8.5,Φ10.5,Φ12.5 | 12.5 | 10.1 | 45.0 | 17.0 | 2.4 | 18.3 | 14.8 |
| SC(JGK)-70 | Φ8.5,Φ10.5,Φ12.5 | 14.5 | 12.0 | 49.0 | 18.0 | 2.6 | 21.4 | 21.0 |
| SC(JGK)-95 | Φ8.5,Φ10.5,Φ12.5,Φ14.5 | 17.0 | 13.8 | 56.0 | 20.5 | 3.0 | 25.0 | 34.0 |
| SC(JGK)-120 | Φ10.5,Φ12.5 | 19.0 | 15.5 | 61.0 | 24.0 | 3.5 | 28.0 | 52.0 |
| SC(JGK)-150 | Φ10.5,Φ12.5,Φ14.5,Φ16.5 | 21.0 | 16.8 | 68.0 | 26.0 | 4.0 | 31.0 | 67.0 |
| SC(JGK)-185 | Φ12.5,Φ14.5,Φ16.5 | 24.0 | 18.9 | 76.0 | 28.0 | 5.0 | 34.7 | 103.0 |
| SC(JGK)-240 | Φ12.5,Φ14.5,Φ16.5 | 26.9 | 21.5 | 89.0 | 33.0 | 5.5 | 39.0 | 154.0 |
| SC(JGK)-300 | Φ16.5 | 30.0 | 23.9 | 98.0 | 38.0 | 6.0 | 43.3 | 210.0 |
| SC(JGK)-400 | Φ16.5 | 31.9 | 25.7 | 110 | 41.0 | 6.0 | 47.0 | 300.0 |
| SC(JGK)-500 | Φ20.5 | 38.0 | 30.0 | 116 | 42.0 | 8.0 | 55.0 | 425.0 |
| SC(JGK)-630 | Φ20.5/ | 45.0 | 36.3 | 135 | 53.5 | 8.6 | 65.0 | 650.0 |
| SC(JGK)-800 | Φ22.5 | 50.0 | 41.0 | 170 | / | / | / | 1000.0 |
| SC(JGK)-1000 | Φ22.5 | 55.0 | 46.0 | 200 | / | / | / | 1330.0 |
