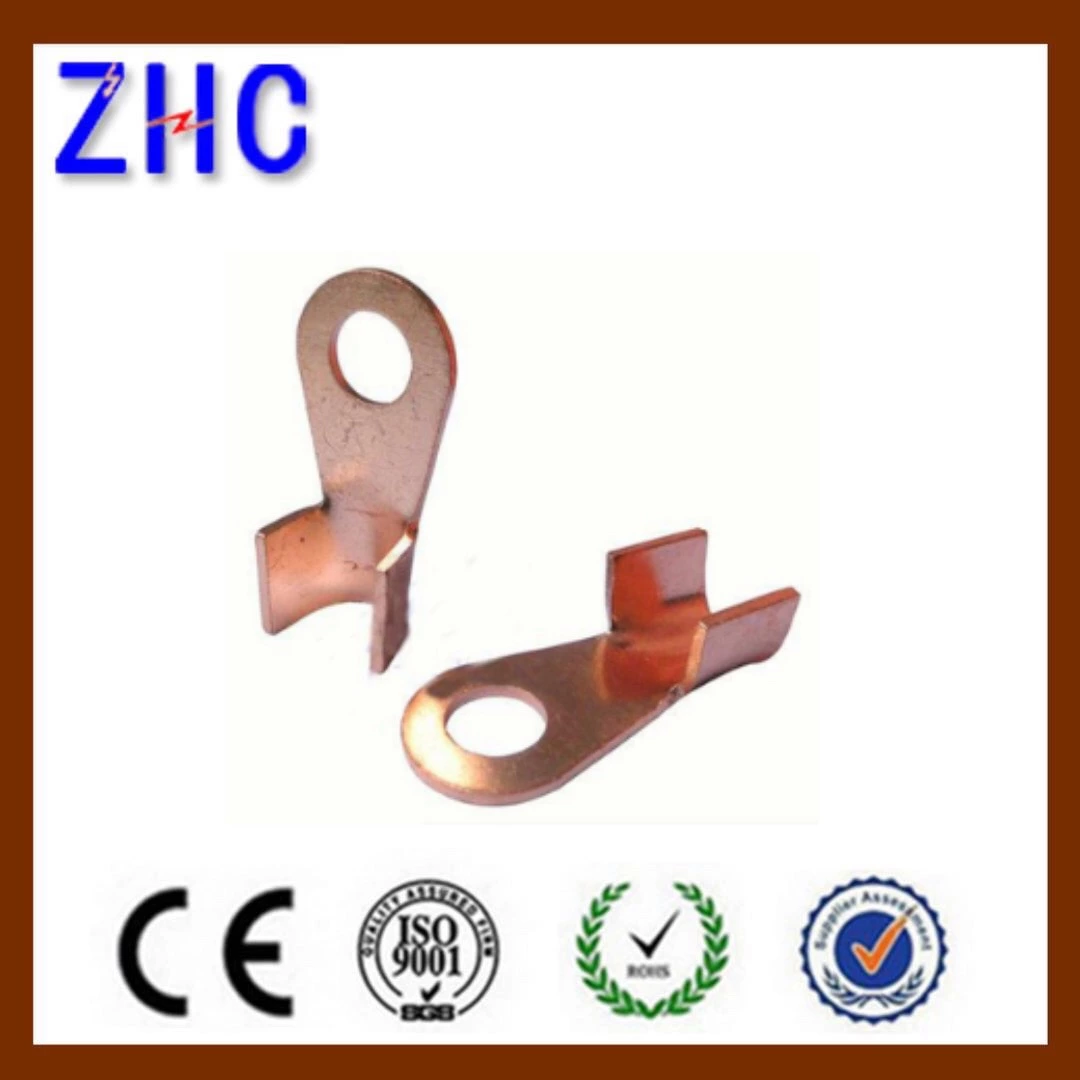

OT Copper Wire Lugs
- Certification
- CE
- Model Number
- OT
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Copper
OT Copper Wire Lugs
Application:
OT Copper Compression Lugs are suitable for stranded round shaped conductors and pre-rounded sector shaped conductors.
Features:
1) Have a viewing window to check the location of the conductor.
2) Material: CU≥99.9%
|

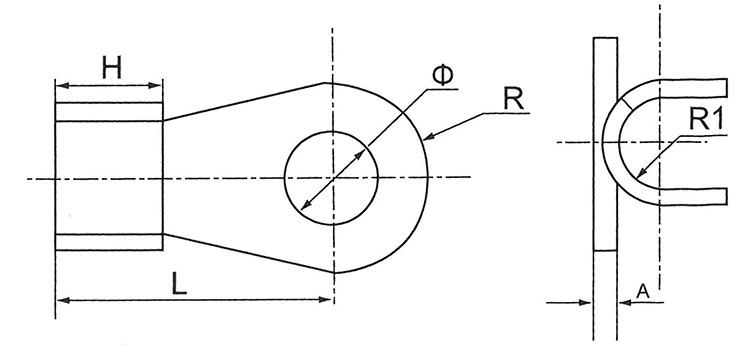

Code |
Dimensions(mm) |
||||
|
φ |
H |
L |
R |
R1 |
|
|
OT-10A |
5.2 |
6 |
14.5 |
4.5 |
2 |
|
OT-20A |
6.2 |
7 |
17 |
5.5 |
2.5 |
|
OT-30A |
6.2 |
8 |
19 |
5.8 |
3.2 |
|
OT-40A |
6.2 |
8.5 |
19.5 |
6 |
3.5 |
|
OT-50A |
6.2 |
9 |
21.5 |
6.5 |
3.5 |
|
OT-60A |
8.4 |
10 |
23 |
7 |
4 |
|
OT-80A |
8.4 |
10 |
25 |
7.5 |
4.5 |
|
OT-100A |
8.4 |
12 |
29 |
8.5 |
5.5 |
|
OT-150A |
10.4 |
12 |
31 |
9 |
6 |
|
OT-200A |
10.4 |
14 |
33 |
10 |
6.5 |
|
OT-250A |
12.4 |
15 |
36 |
10.5 |
7 |
|
OT-300A |
12.4 |
16 |
40 |
11.5 |
8 |
|
OT-400A |
14.5 |
18 |
43 |
13 |
9 |
|
OT-500A |
14.5 |
20 |
46 |
14.5 |
10 |
|
OT-600A |
16.5 |
22 |
50.5 |
16 |
10.5 |
|
OT-800A |
18.5 |
28 |
57 |
18 |
12.5 |
|
OT-1000A |
18.5 |
33 |
66 |
20.5 |
15.5 |
