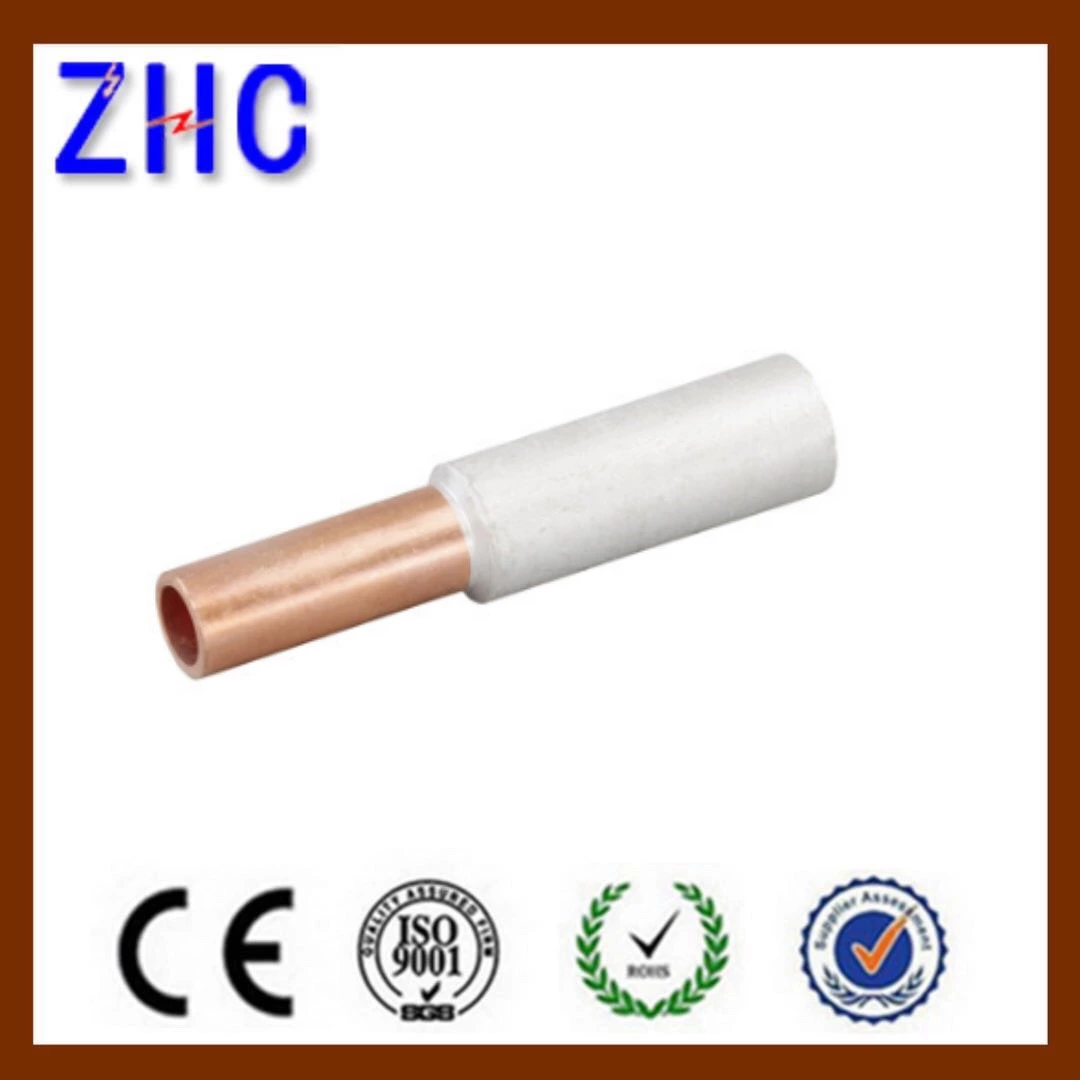

GTL Pin Cable Bimetallic Lug Tube
- Certification
- CE
- Model Number
- GTL
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Copper & Aluminum
GTL Pin Cable Bimetallic Lug Tube
Application:
GTL Pin Friction Welded Connector is suitable for screwing non-tension Al connections in Cu clamps.
Features:
1. Friction welded.
2. Aluminium barrel is filled by neutral grease and covered by cap.
3. Pre-rounded sector shaped conductors.
4. Material: CU≥99.9%, AL≥99.5%
| Item No. | D1±0.2 | d1±0.2 | D2±0.2 | d2±0.2 | L1±2 | L2±2 | L±2 |
| GTL-16 | 9 | 5.7 | 10 | 6.5 | 25 | 33 | 70 |
| GTL-25 | 10 | 6.5 | 12 | 7.5 | 27 | 37 | 75 |
| GTL-35 | 11 | 7.5 | 14 | 8.5 | 29 | 40 | 84 |
| GTL-50 | 12 | 8.5 | 16 | 10.2 | 30 | 45 | 89 |
| GTL-70 | 14 | 10.0 | 18 | 11.5 | 35 | 48 | 98 |
| GTL-95 | 16 | 11.5 | 21 | 13.5 | 38 | 50 | 106 |
| GTL-120 | 18 | 13.5 | 23 | 15.0 | 40 | 50 | 110 |
| GTL-150 | 20 | 15.0 | 25 | 16.5 | 43 | 53 | 115 |
| GTL-185 | 22 | 16.5 | 27 | 18.5 | 45 | 57 | 125 |
| GTL-240 | 24 | 18.5 | 30 | 21.0 | 48 | 62 | 130 |
| GTL-300 | 27 | 21.0 | 34 | 23.5 | 53 | 65 | 145 |
| GTL-400 | 30 | 23.5 | 38 | 26.5 | 60 | 70 | 150 |
| GTL-500 | 34 | 26.5 | 44 | 29.0 | 64 | 78 | 160 |
