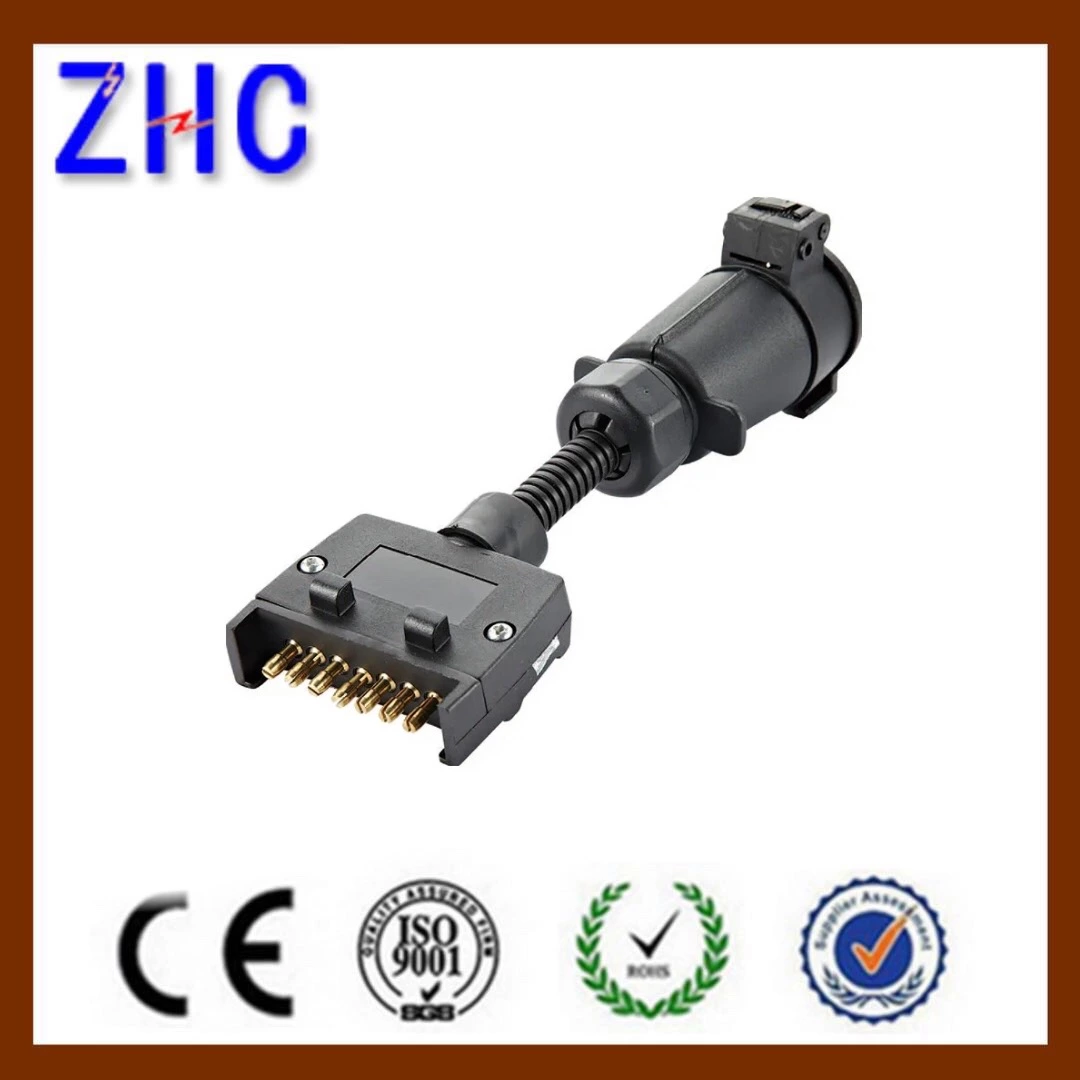

Australian Style Male 7P Flat Plug to 5P Round Bigger Female socket 12V Plastic Trailer Connector For Semi Car Caravans
- Certification
- CE and ROHS
- Model Number
- ZC7028
- MOQ
- 1000PCS
- Packaging Details
- 100PCS/CTN
- Supply Ability
- 200000PCS/Month
- Material
- Nylon66 plastic + Brass Contact
- Color
- Black
- Poles
- 7pins 5pin
- Voltage
- 12V
- Type
- Australian Trailer Connector Set
- Gender
- Male+Female
- Wire
- Screw Wire
Australian Style Male 7P Flat Plug to 5P Round Bigger Female socket 12V Plastic Trailer Connector For Semi Car Caravans
Product Function:
1.Criss-cross of slotted brass contact, matched with female needle.
2. The surface is matte process and new material.
3. Appearance design is convenient and easy.
Type | Australian Trailer Connector Set |
Model NO. | ZC7028 |
Gender | Male +Female |
Color | Black |
Voltage | 12V |
Body Material | Nylon 66 Plastic |
Contact materials | Brass contact |
Pin | 5 pin 7pin |
Wire Method | Screw Install |
certification | CE, ROHS, PAHS |
Aplication | Automotive,Trailer,Truck,Yacht and so on |
Specifications:
7 Pin Lighting Connections - 12 N Black Cable Function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
