Australia Type Trailer Connector

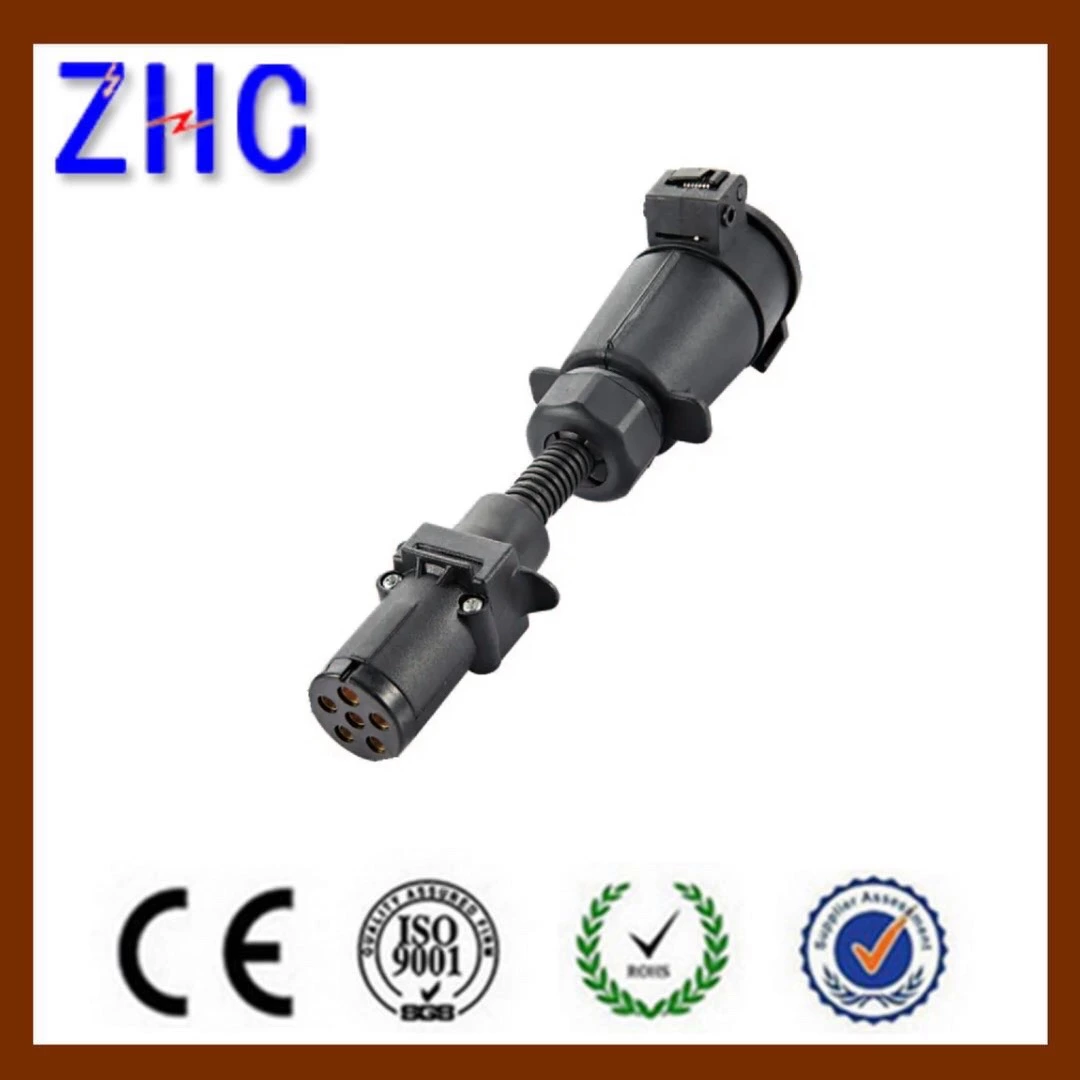

Australian Style Male 6P Round Plug to 7P Round Female socket 12V Plastic Trailer Connector For Vehicle Trailer

Certification
CE and ROHS
Model Number
ZC7024
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
7pins 6pin
Voltage
12V
Type
Australian Trailer Connector Set
Gender
Male+Female
Wire
Screw Wire

Contact Now



Australian trailer connector

Australian Style  Male 6P Round Plug to 7P  Round  Female socket  12V Plastic Trailer Connector For Vehicle Trailer

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  Australian Trailer Connector Set
Model NO.  ZC7024
Gender   Male +Female
Color   Black
Voltage  12V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 6 pin 7pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





Australian Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
