American Type Trailer Connector

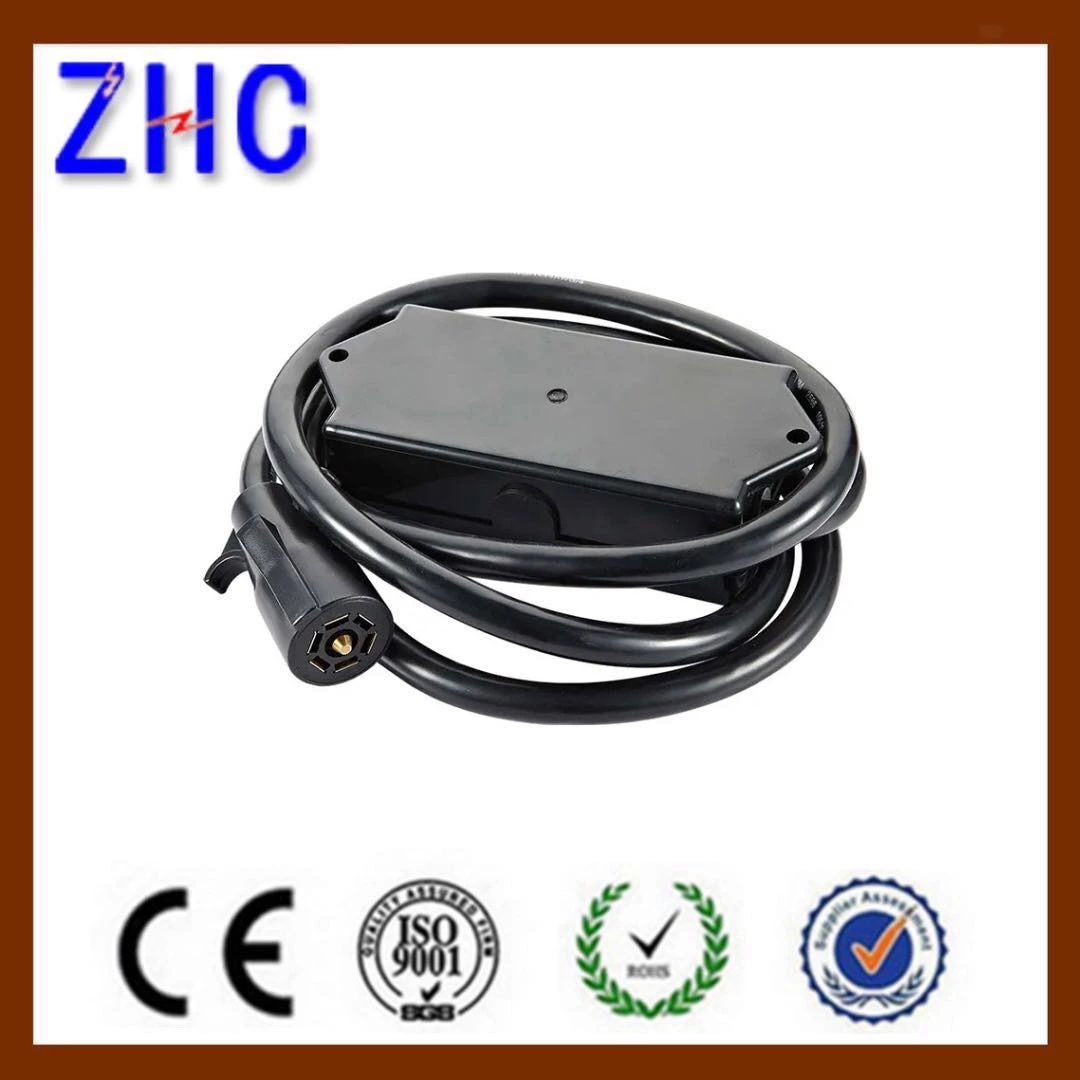

American Type Trailer Connector Kit Power Cord 7P Injection Electric Plug With 6 7 8 10 FT Cable & Junction Box

Certification
CE and ROHS
Model Number
ZC8029
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
7ways
Voltage
24V
Type
American Trailer Connector
Gender
Male
Wire
Screw Wire

Contact Now



American trailer connector

American Type Trailer Connector Kit  Power Cord  7P Injection Electric Plug With 6 7 8 10 FT Cable  & Junction Box

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  American Trailer connector
Model NO.  ZC8029
Gender   Male
Color   Black
Voltage  24V
Length of Cable   6 7 8 10 Feet
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 7ways
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





American 12V  Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
