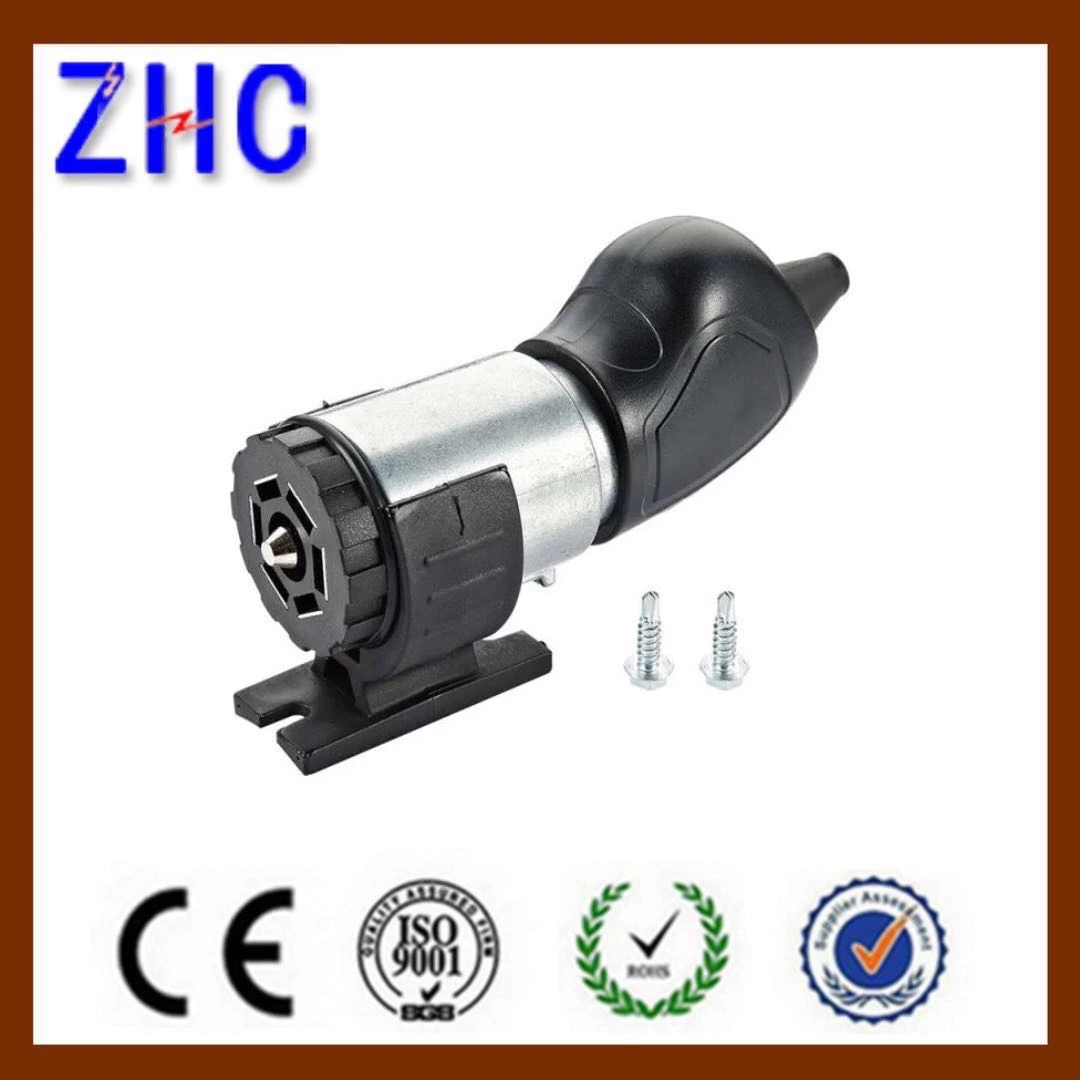

American Type Trailer Connector

American Type Auto Parts 24V 7P metal plug Trailer Connector For Towing Vehicle

Certification
CE and ROHS
Model Number
ZC8026
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Al + Brass Contact
Color
Silver
Poles
7P
Voltage
24V
Type
American Trailer Connector
Gender
male
Wire
Screw Wire

Contact Now



American trailer connector

American Type Auto Parts 24V 7P  metal plug Trailer Connector  For Towing Vehicle

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  American Trailer connector
Model NO.  ZC8026
Gender   Male
Color  Plastic
Voltage   24V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 7P
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





American 12V  Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
