American Type Trailer Connector

American Type 24V 7 Electric Power Adapter 7Ways Blade Plug To 5 Ways Flat socket Trailer Connector Kit

Certification
CE and ROHS
Model Number
ZC8034
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
plastic
Color
Black
Poles
7P 5P
Voltage
24V
Type
American Trailer Connector
Gender
male+female
Wire
Screw Wire

Contact Now



American trailer connector

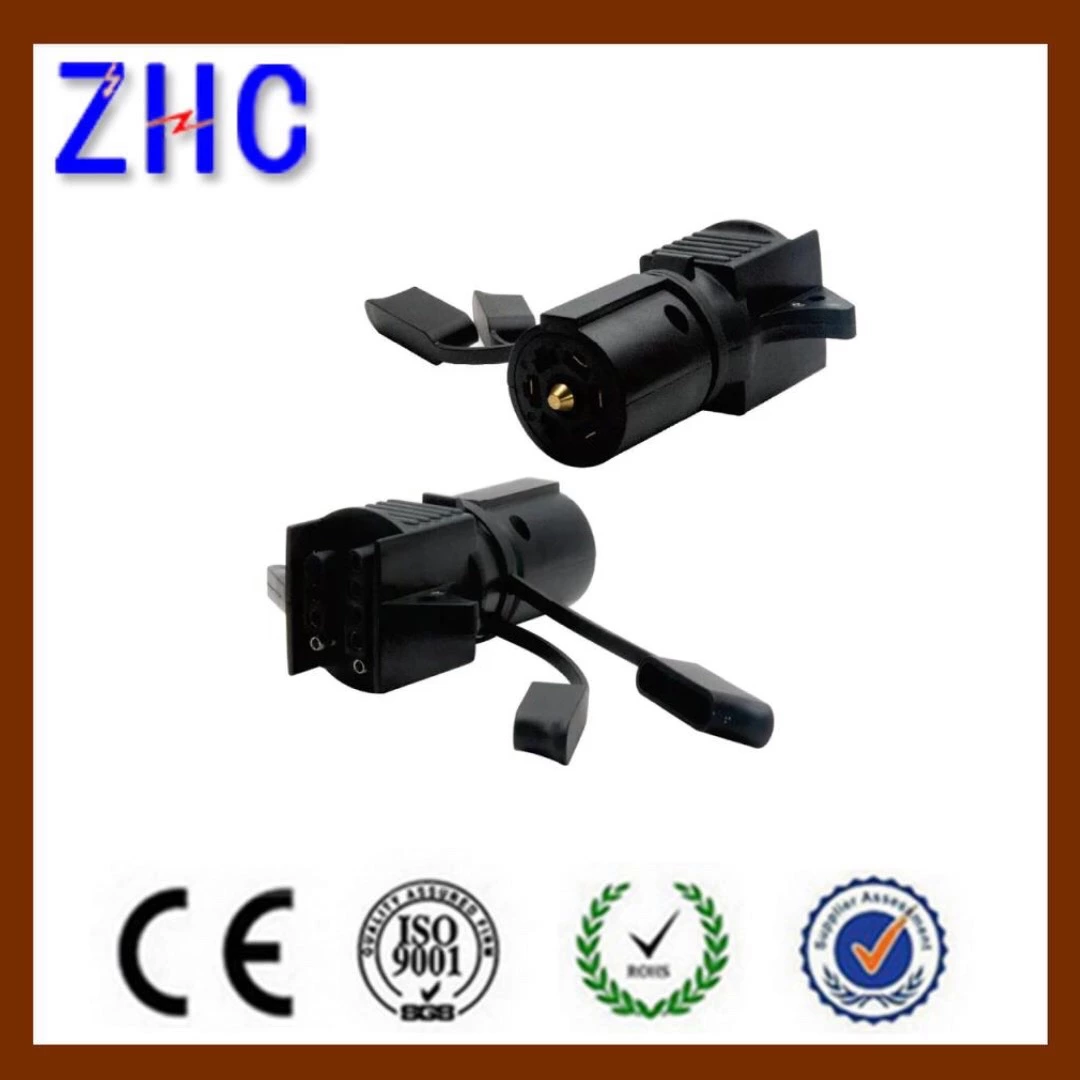

American Type  24V 7  Electric Power Adapter  7Ways Blade Plug To  5 Ways  Flat socket  Trailer Connector Kit

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  American Trailer connector
Model NO.  ZC8034
Gender   Male +Female
Color  Black
Voltage   24V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 7P 5P
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





American 12V  Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
