24V Trailer Connector Cable Set

ISO 1185 N Type 24V 7P ABS/ESB Trailer Towing Connector With Spring Cable

Certification
CE and ROHS
Model Number
ZC1116
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Plastic + Brass Contact
Color
Black
Poles
7pins
Voltage
24V
Type
European Trailer Connector Cable Set
Gender
Male
Wire
Screw Wire

Contact Now

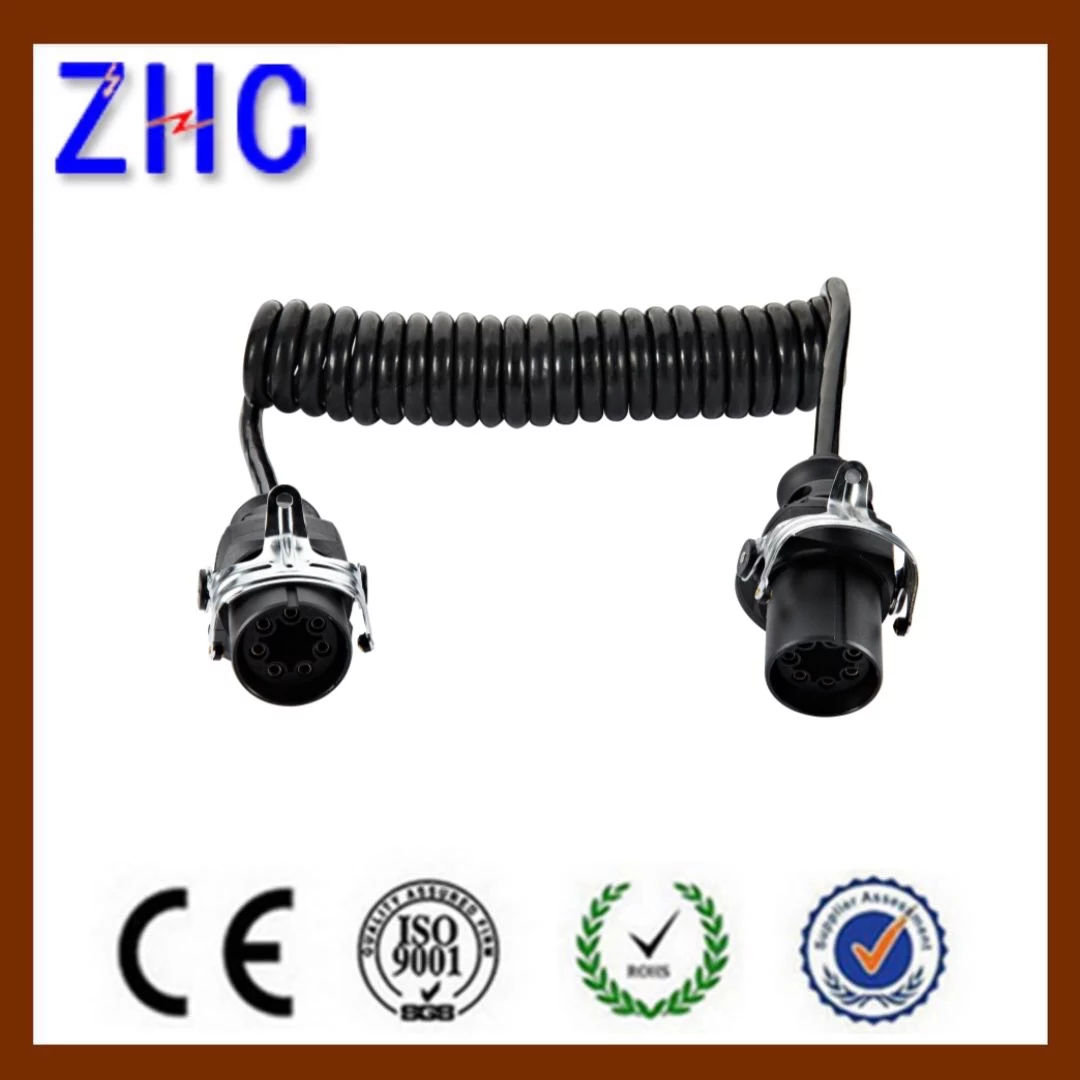

24V Spring Cable Trailer connector



ISO 1185 N Type 24V  7P ABS/ESB  Trailer Towing Connector With Spring Cable



Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Connector Cable Set
Model NO.  ZC1116
Gender   Male
Color   Black
Voltage  24V
Body Material  Plastic
Contact materials Brass contact
Pin  7 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





spiral coil cable trailer
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )

24V 15P trailer connector with cable
