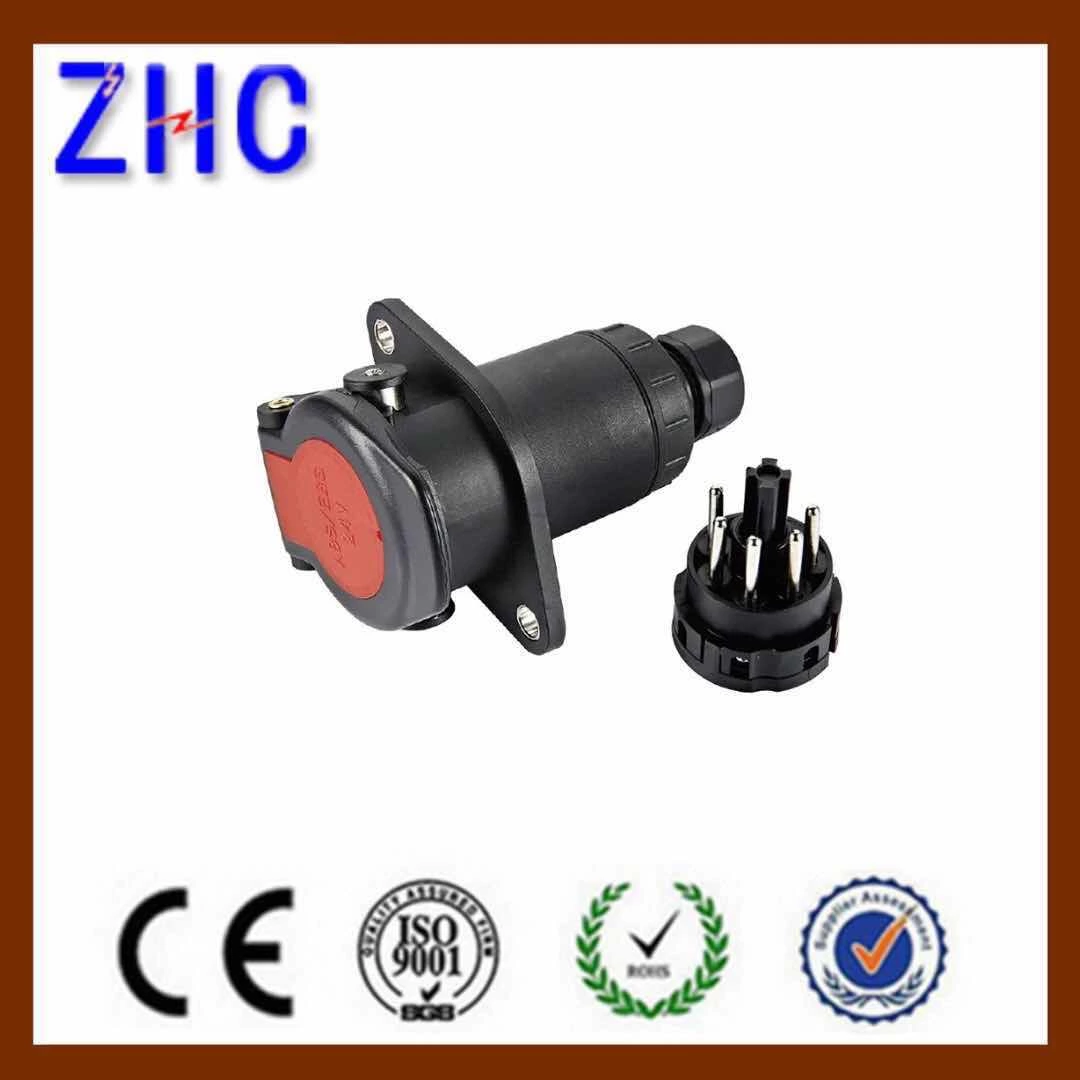

24V ABS/EBS Trailer Plug Socket Connector

Tinned Copper Needle 5P 24V ABS / EBS Female Trailer socket Connector For Auto Trailer Car

Certification
CE and ROHS
Model Number
ZC6032
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Tinned Copper
Color
Black
Poles
5pins
Voltage
24V
Type
European ABS EBS Trailer connector
Gender
Female
Wire
Screw Wire

Contact Now

24 Auto Trailer connector



Tinned Copper Needle  5P 24V ABS / EBS  Female Trailer socket Connector For Auto Trailer Car

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European ABS /EBS Trailer Connector
Model NO.  ZC6032
Gender   Female
Color   Black
Voltage  24V
Body Material  Nylon 66 Plastic
Contact materials Tinned Copper
Pin 5 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





EBS Trailer connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



ABS 24 Trailer plug
