12V Mounted Female Trailer Connector

Round Model CE ROHS Waterproof 7P 12V Heavy Duty Aluminum Mounted Female Trailer Socket Towing Connector

Certification
CE and ROHS
Model Number
ZC3004
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Aluminum + Brass Contact
Color
Silver
Poles
7pins
Voltage
12V
Type
European Mounted Trailer Socket
Gender
Female
Wire
Screw Wire

Contact Now



Euro Trailer connectors

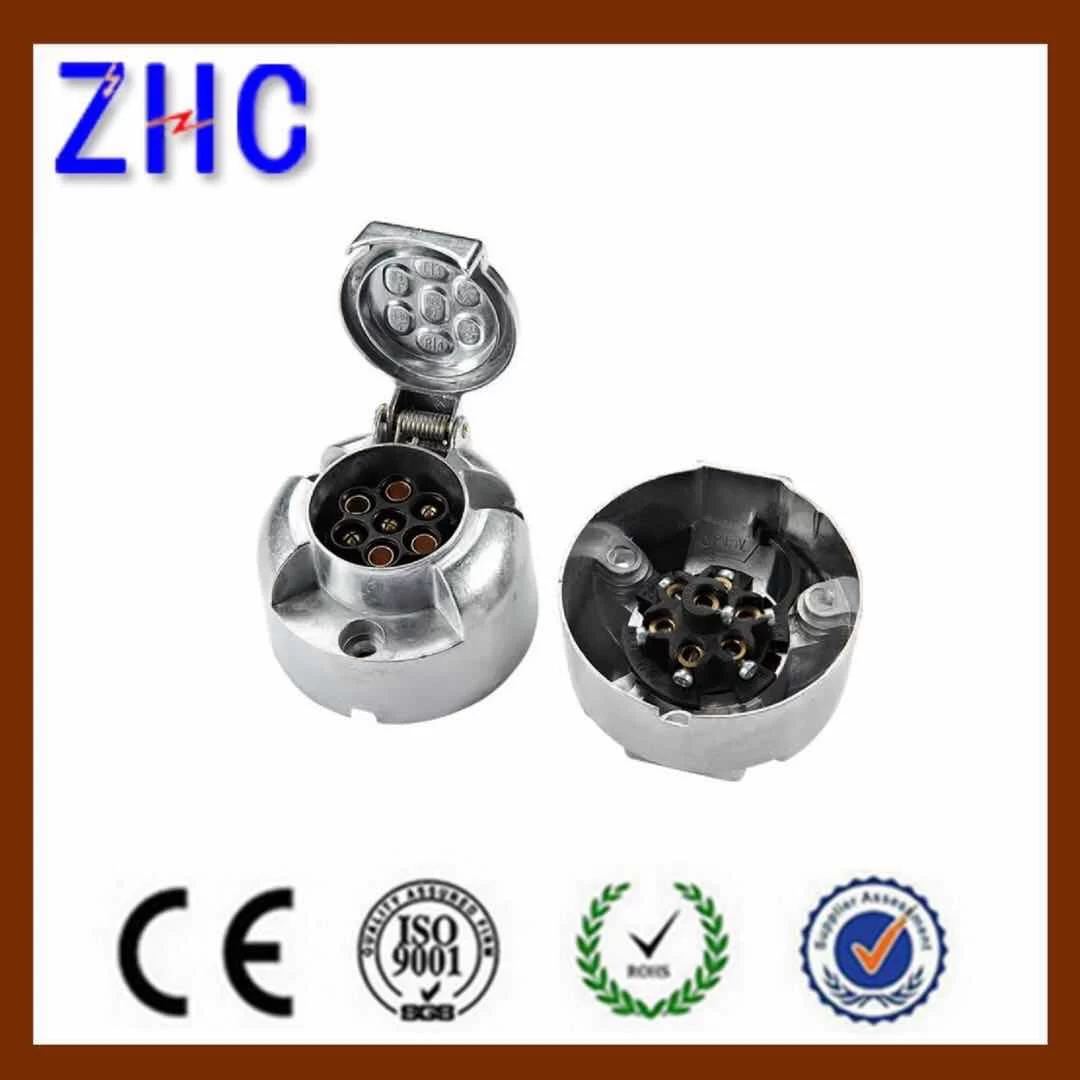

Round Model CE ROHS Waterproof  7P 12V Heavy Duty Aluminum Mounted Female Trailer Socket Towing Connector

Trailer Socket Function:

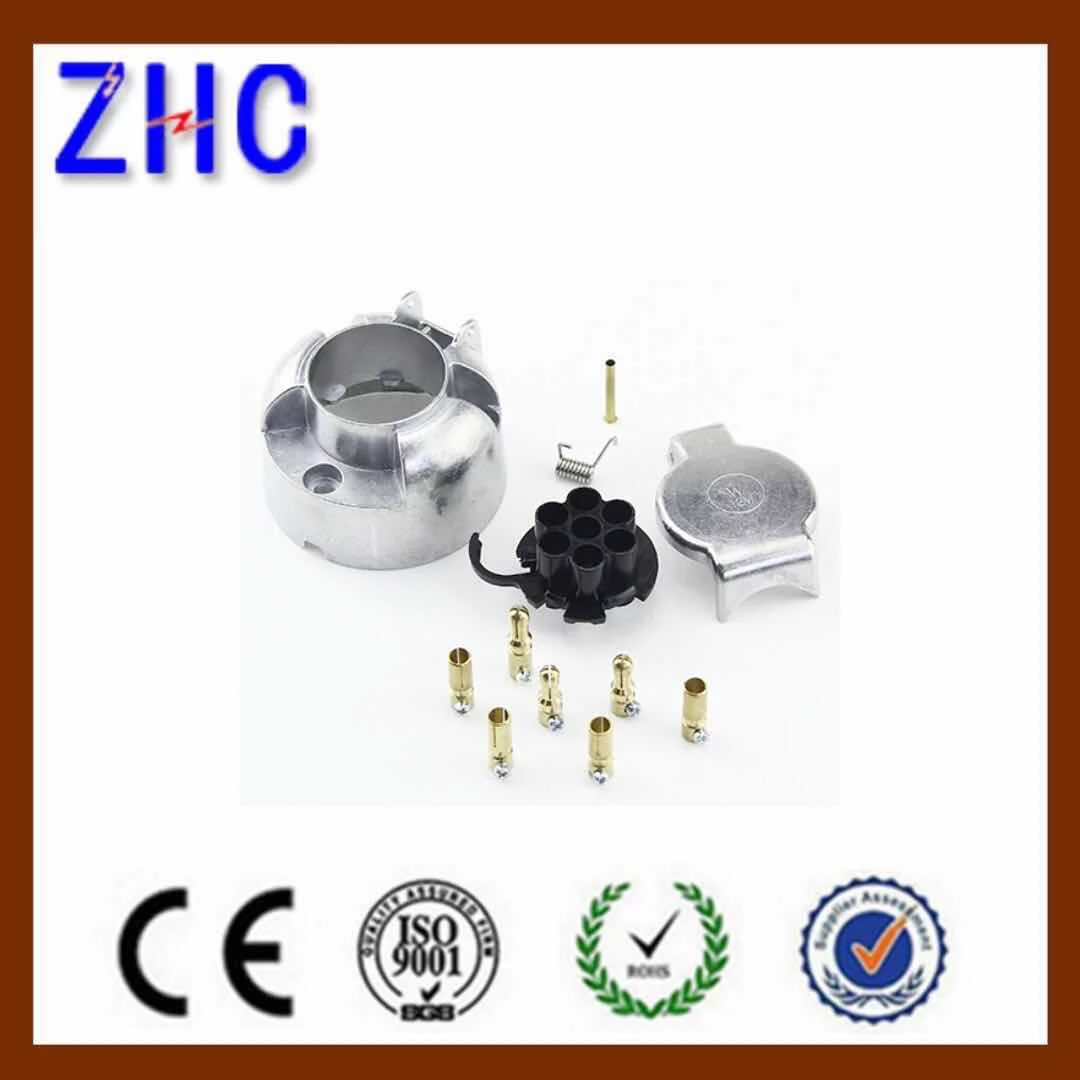

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3004
Gender   Female
Color   Silver
Voltage  12V
Body Material  Aluminum
Contact materials Brass contact
Pin 7 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





female trailer connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )

aluminum trailer connector



7P Trailer Connector
