12V Mounted Female Trailer Connector

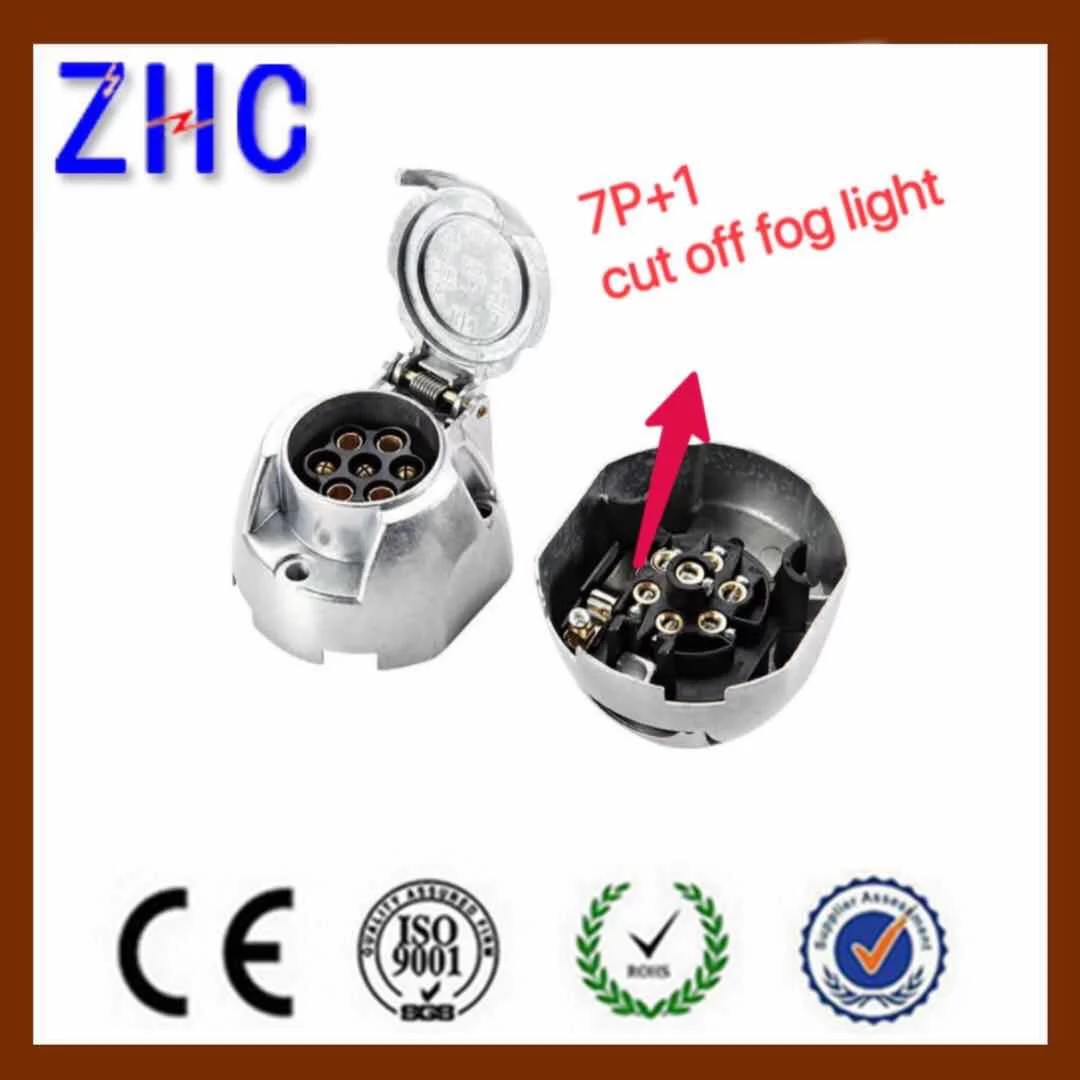

Economic 7P+1 Aluminum 12V Square Female Wall Mounted Trailer Socket Connector With Function Cut off fog light

Certification
CE and ROHS
Model Number
ZC3002B
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Aluminum + Brass Contact
Color
Black
Poles
7pins+1
Voltage
12V
Type
European Mounted Trailer Socket
Gender
Female
Wire
Screw Wire

Contact Now



towing trailer connector

Economic 7P+1 Aluminum 12V Square Female Wall Mounted Trailer Socket Connector With Function Cut off fog light

Trailer Socket Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3002B
Gender   Female
Color   Black
Voltage  12V
Body Material  Aluminum
Contact materials Brass contact
Pin 7 pin +1
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





female trailer connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )

Extra Pin:  Cut off fog light

7P+1 Trailer connector


12V 7P Trailer socket
