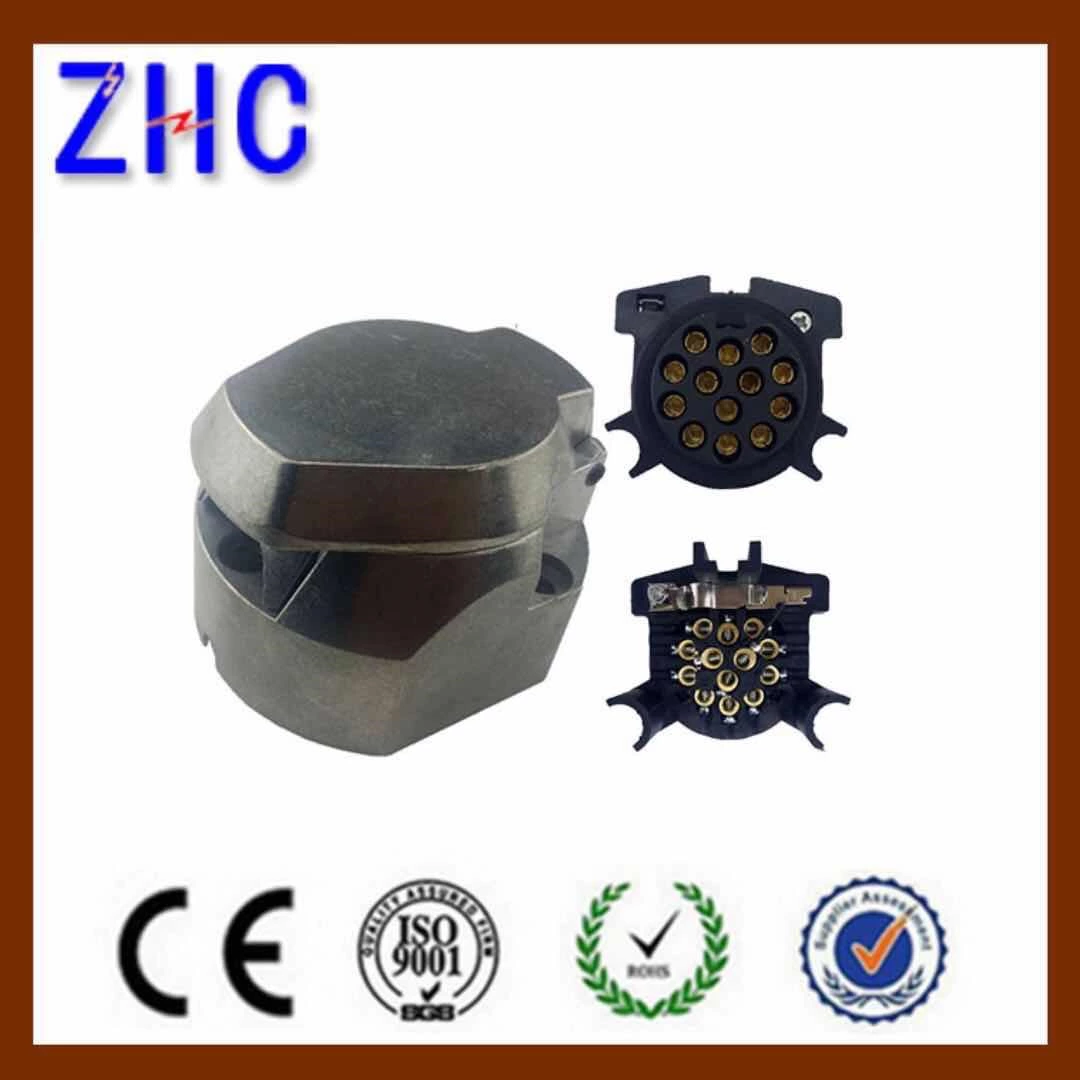

12V Mounted Female Trailer Connector

13+1Pin 12V Heavy Duty Aluminum Mounted Female Trailer Socket Towing Connector With Cut off fog light function

Certification
CE and ROHS
Model Number
ZC3009
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Aluminum + Brass Contact
Color
Silver
Poles
13+1pins
Voltage
12V
Type
European Mounted Trailer Socket
Gender
Female
Wire
Screw Wire

Contact Now



Euro Trailer connectors

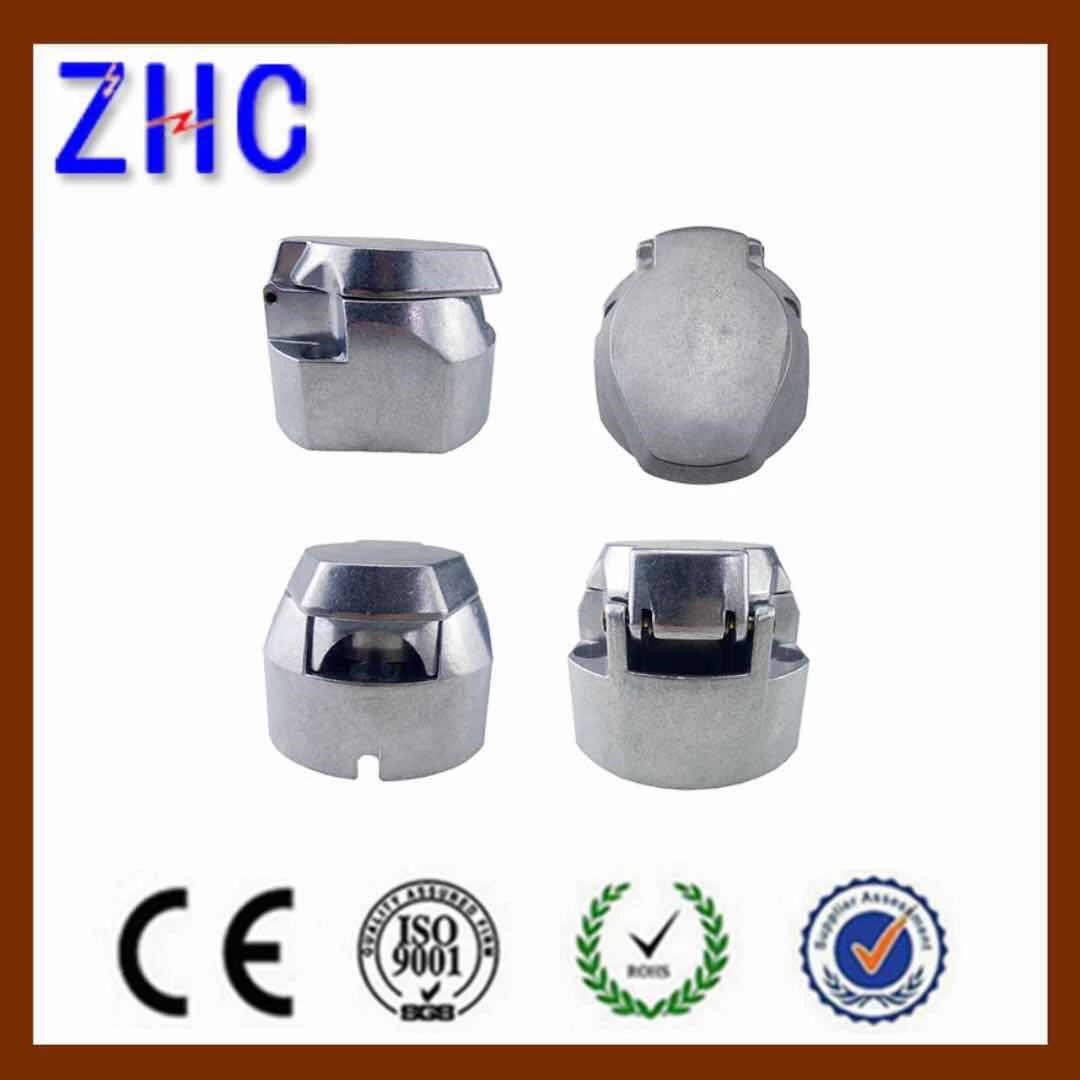

13+1Pin  12V Heavy Duty Aluminum Mounted Female Trailer Socket Towing Connector With Cut off fog light function

Trailer Socket Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3009
Gender   Female
Color   Silver
Voltage  12V
Body Material  Aluminum
Contact materials Brass contact
Pin 13+1 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





female trailer connector
Specifications:

13 Pin Lighting Connections - Cable Function

Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )

Extra Pin: Cut off the fog light

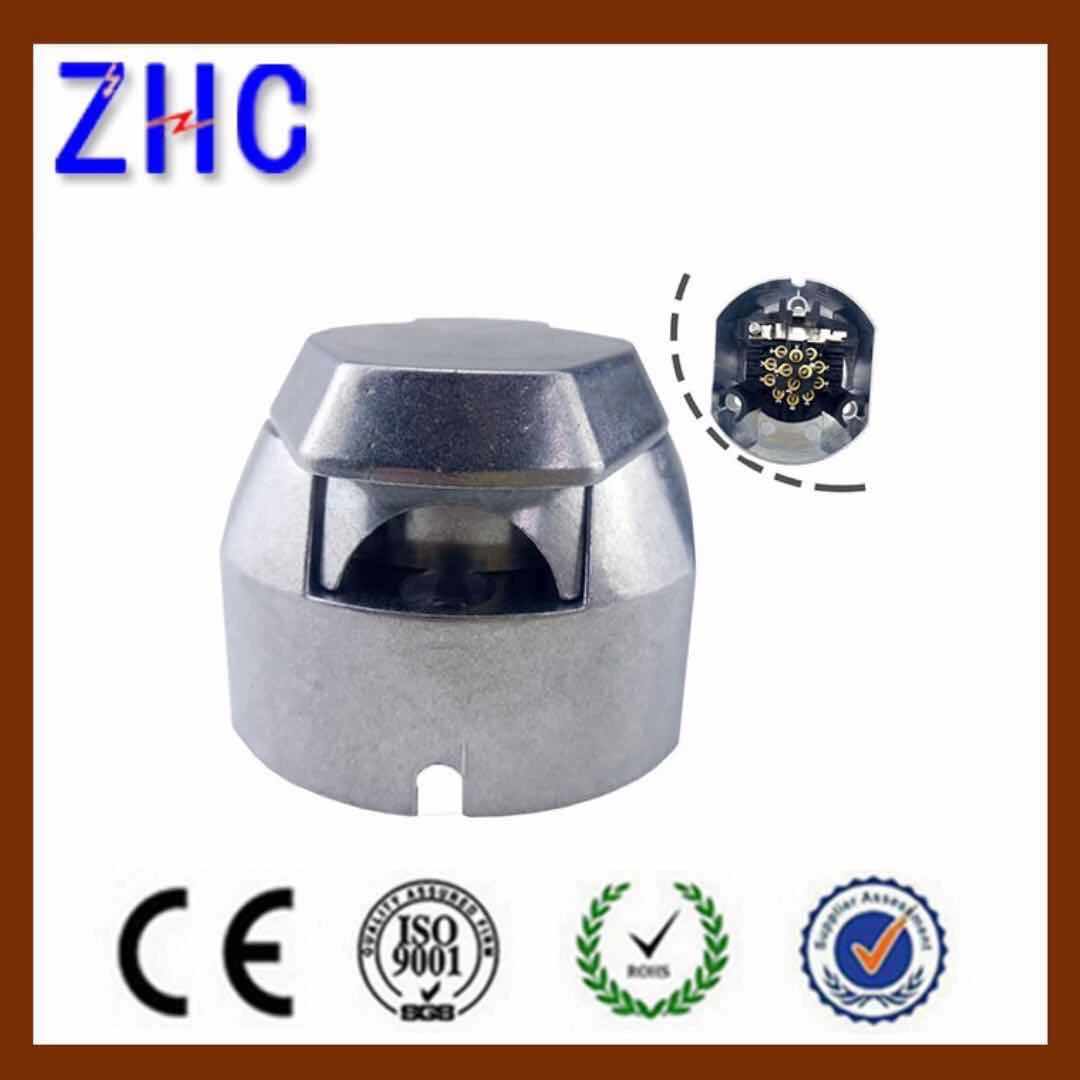

13P AL trailer socket
